JLG 2646 ES

SMITHFIELD, NSW

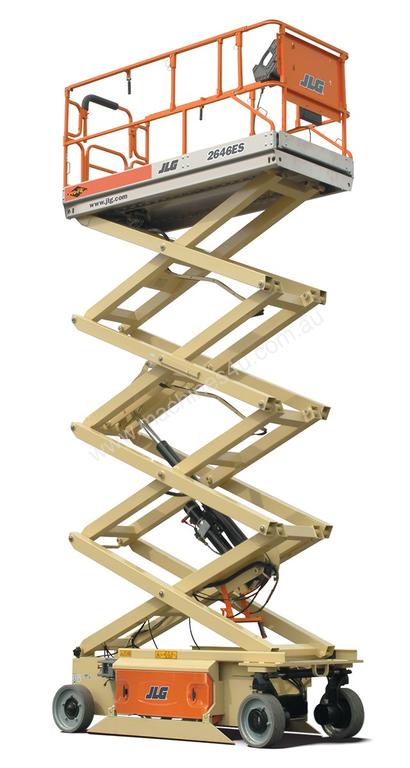

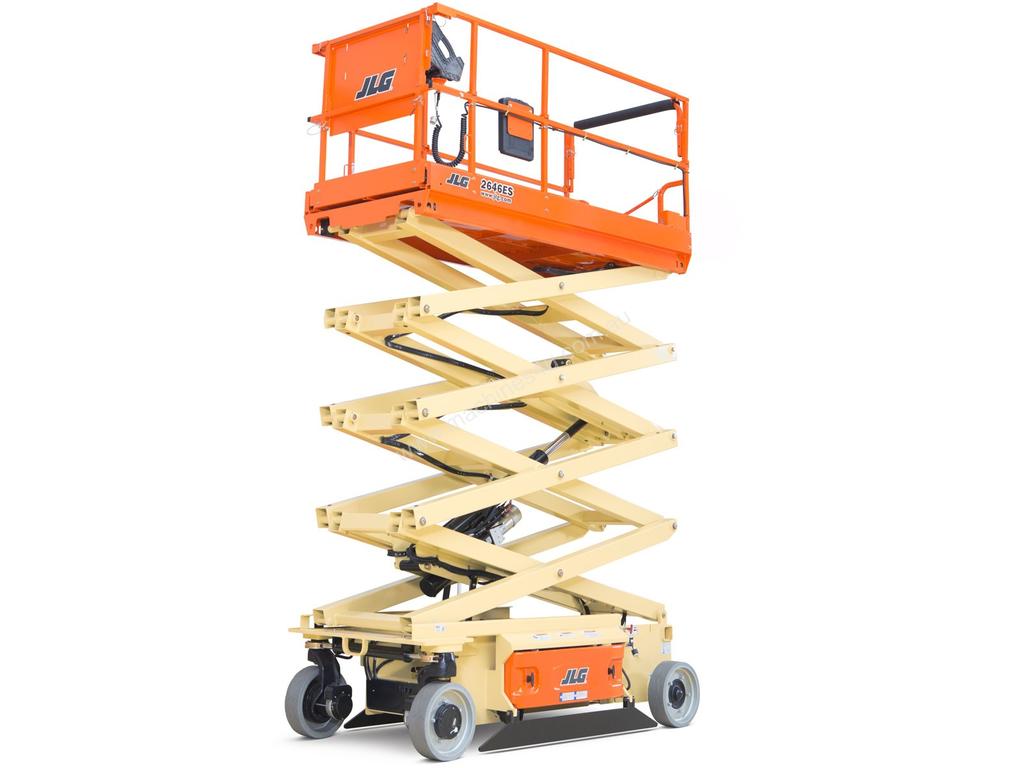

JLG 2646 ES electric scissor lift for sale providing a platform capacity of 453.59 kg with a maximum working height of 9.75 m and a platform height of 7.92 m.

JLG 2646 ES electric powered scissor lift available for sale. This JLG scissor lift has an overall height of 2.36 meters stowed, a width of 1.17 meters weighing in at 2257 kilograms. The JLG 2646 ES scissor lift features a maximum platform working height of 9.75 meters with a maximum platform height of 7.92 meters. JLG scissor lifts are suitable for all industries and include a 2-year factory warranty.

 Operating Limits
Platform Working Height Maximum (m) : 9.75
Platform Height Maximum (m) : 7.92
Platform Occupancy Indoor : To Be Confirmed
Platform Rated Capacity Indoors (kg) : 453.56
Platform Occupancy Outdoor : To Be Confirmed
Platform Rated Capacity Outdoors (kg) : 453.56
Maximum Drive Speed Stowed (km/h) : 4
Maximum Drive Speed Raised (km/h) : 0.8
Wind Speed Rating (km/h) : Not Available
 Dimensions :
Height Stowed (m) : 2.36
Width Stowed (m) : 1.17
Height Stowed with Rails Folded (m) : 1.97
Outside Turning Radius (m) : 2.41
Track (m) : Not Available
Wheelbase Axle to Axle (m) : 2.09
Ground Clearance (m) : 0.127
Platform Width Outside (m) : 1.12
Platform Length Outside (m) : 2.5
Platform Length with Extension (m) : 1.27
 Weights :
Unit Weight (kg) : 2257
Occupied Floor Pressure (kg/m2) : Not Available
Worst Case Static Wheel Pressure (psi) : Not Available
Worst Case Static Wheel Load (kg) : Not Available
 Operating Environments :
Rated for Outdoor Use : Yes
Minimum Operating Temperature (C) : Not Available
Maximum Operating Temperature (C) : Not Available
Pick and Carry (Travelling) Maximum Side Slope (deg) : Not Available
Pick and Carry (Travelling) Maximum Decline Slope (deg) : Not Available
Pick and Carry (Travelling) Maximum Incline Slope (deg) : Not Available
Lifting (Stationary) Maximum Decline Slope (deg) : Not Available
Sound Pressure in Cabin (dBA) : Not Available
Vibration Levels Transmitted to Body (m/s2) : Not Available
Sound Power Level (dB) : Not Available
Vibration Level at Operators Hands (m/s2) : Not Available
Vibration Levels at Operator's Feet (m/s2) : Not Available
 Standard Features :
Proportional Joystick : Yes
 Fluid Capacities :
Hydraulic Oil (LTRS) : 6.4
 Hydraulic System :
Hydraulic System Maximum Pressure (bar) : Not Available
Hydraulic Valve Manufacturer : Not Available
Maximum Hydraulic Pump Flow (L/min) : Not Available
 Safety Features :
Rotating Beacon : No
Horn : Yes
Alarm Reverse Warning : Yes
Tilt Angle Indicator Cut-Out (deg) : Not Available
 Tyres :
Tyre Types : Solid Non-Marking
Tyre Manufacturer : Not Available
Tyre Sizes (mm) : 36 x 12.5
 Lighting and Electrical :
Electrical Circuit (V) : 24
Battery (Ah) : 4 x 6V 220 aH Batteries
