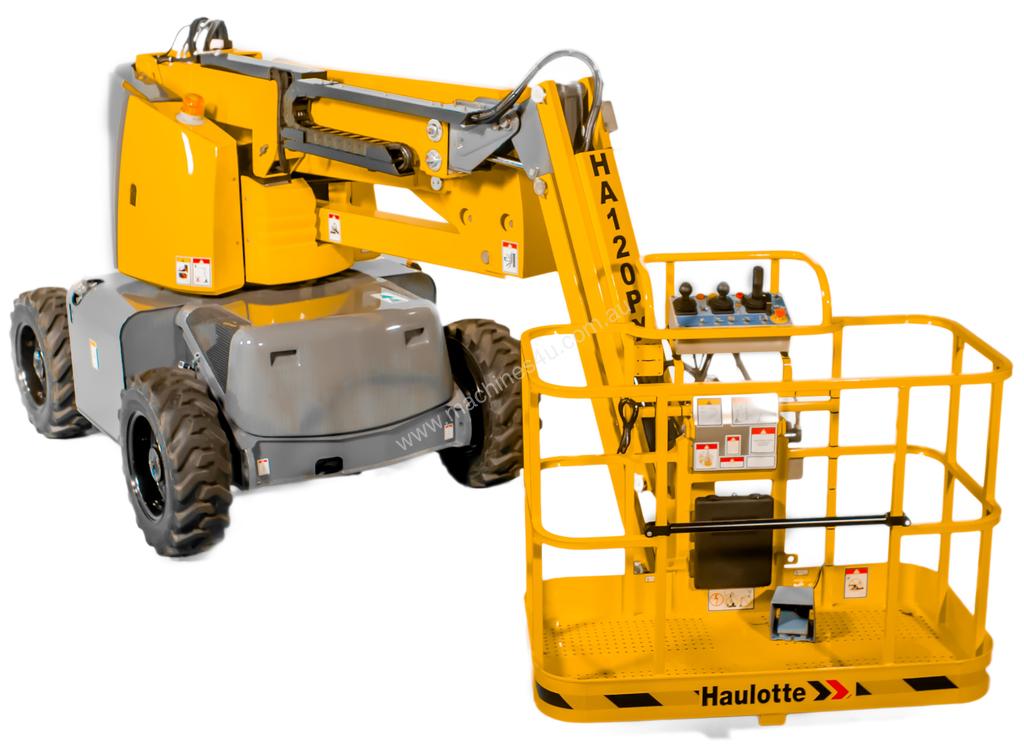

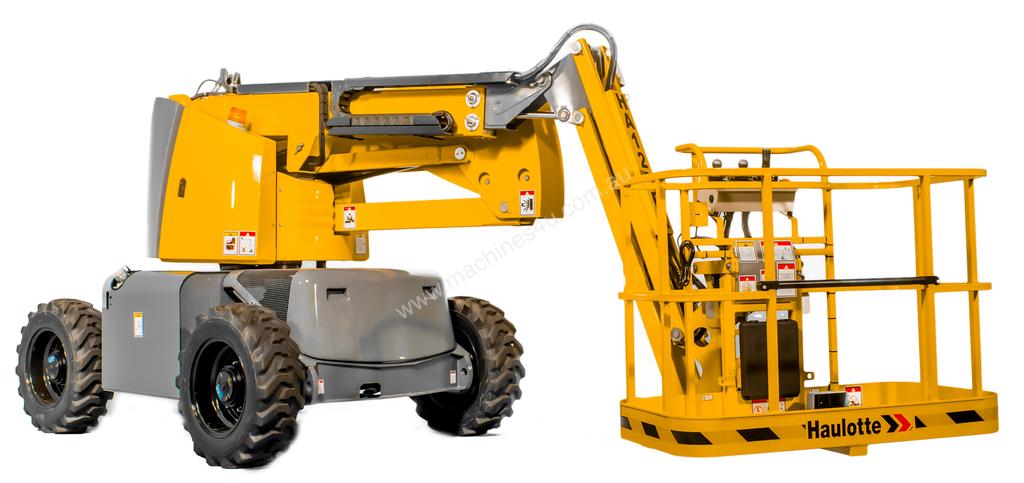

Haulotte HA 120 PX Knuckle Boom Lift

SMITHFIELD, NSW

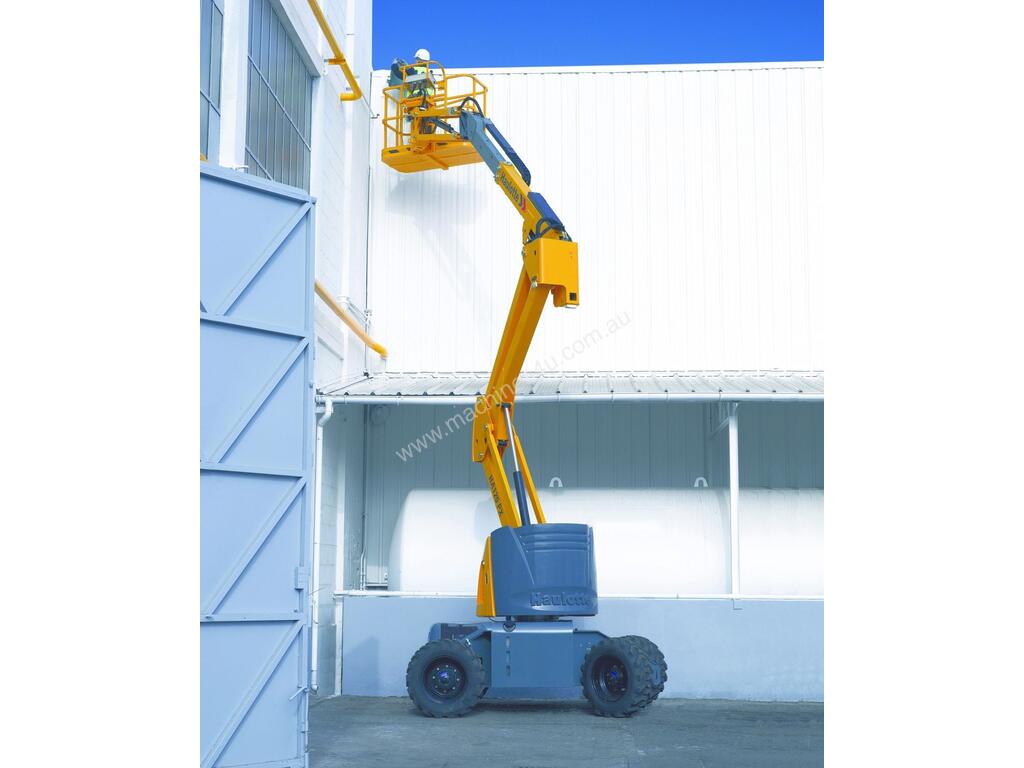

Haulotte HA 120 PX knuckle boom lift for hire providing a platform working height of 12.4 m with a horizontal reach of 6.6 m and a rated capacity of 230 kg.

Haulotte HA 120 PX diesel powered knuckle boom lift available for hire and rental. This Haulotte knuckle boom lift has an overall height of 2.2 metres stowed, a width of 1.9 metres weighing in at 5620 kilograms. The Haulotte HA 120 PX knuckle boom lift features a maximum platform working height of 12.4 meters with a maximum platform height of 10.4 meters. This knuckle boom lift has a drive speed of 5 km/h stowed with a platform rotation of 180 degrees capable of lifting 230 kg.

 Operating Limits
Platform Working Height Maximum (m) : 12.4
Platform Height Maximum (m) : 10.4
Horizontal Reach : 6.6
Maximum Drive Speed Stowed (km/h) : 5
Turntable Rotation (deg) : 350
Platform Rotation (deg) : 180 (+90/-90)
Platform Occupancy Indoor : Not Available
Platform Rated Capacity Indoors (kg) : 230
Platform Occupancy Outdoor : Not Available
Platform Rated Capacity Outdoors (kg) : 230
Wind Speed Rating (km/h) : 45
 Dimensions :
Height Stowed (m) : 2.2
Width Stowed (m) : 1.9
Outside Turning Radius (m) : 3.85
Track (m) : Not Available
Wheelbase Axle to Axle (m) : 1.92
Ground Clearance (m) : 0.26

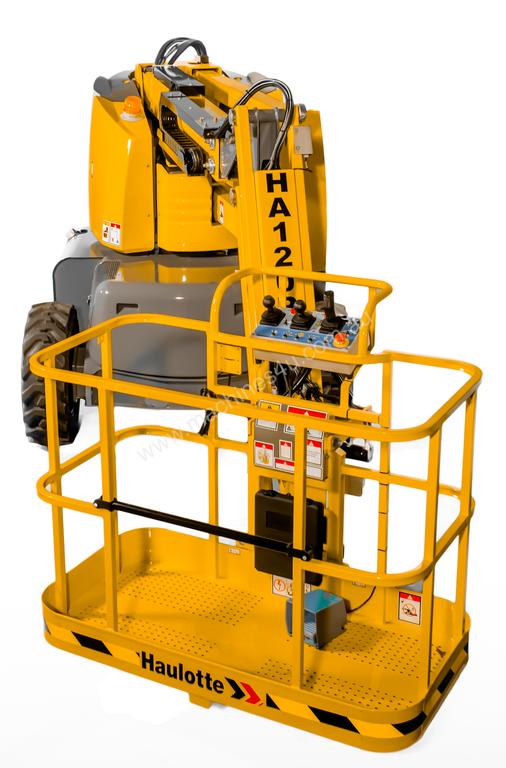

Platform Width Outside (m) : 0.8
Platform Length Outside (m) : 1.2
Platform Length with Extension (m) : Not Available
 Weights :
Unit Weight (kg) : 5620
Occupied Floor Pressure (kg/m2) : Not Available
Worst Case Static Wheel Pressure (psi) : Not Available
Worst Case Static Wheel Load (kg) : Not Available
 Operating Environments :
Rated for Outdoor Use : Yes
Minimum Operating Temperature (C) : Not Available
Maximum Operating Temperature (C) : Not Available
Pick and Carry (Travelling) Maximum Side Slope (deg) : Not Available
Pick and Carry (Travelling) Maximum Decline Slope (deg) : Not Available
Pick and Carry (Travelling) Maximum Incline Slope (deg) : Not Available
Lifting (Stationary) Maximum Decline Slope (deg) : Not Available
Sound Pressure in Cabin (dBA) : Not Available
Vibration Levels Transmitted to Body (m/s2) : Not Available
Sound Power Level (dB) : Not Available
Vibration Level at Operators Hands (m/s2) : Not Available
Vibration Levels at Operator's Feet (m/s2) : Not Available
 Standard Features :

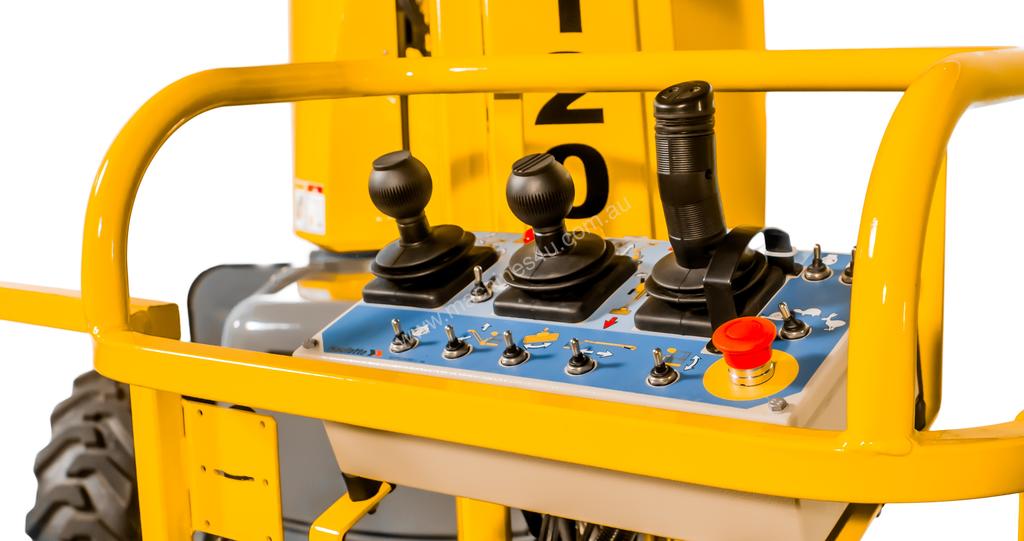

Proportional Joystick : Not Available
 Fluid Capacities :
Diesel (LTRS) : Not Available
Engine Oil (LTRS) : Not Available
Coolant (LTRS) : Not Available
Hydraulic Oil (LTRS) : Not Available
 Drive Components :

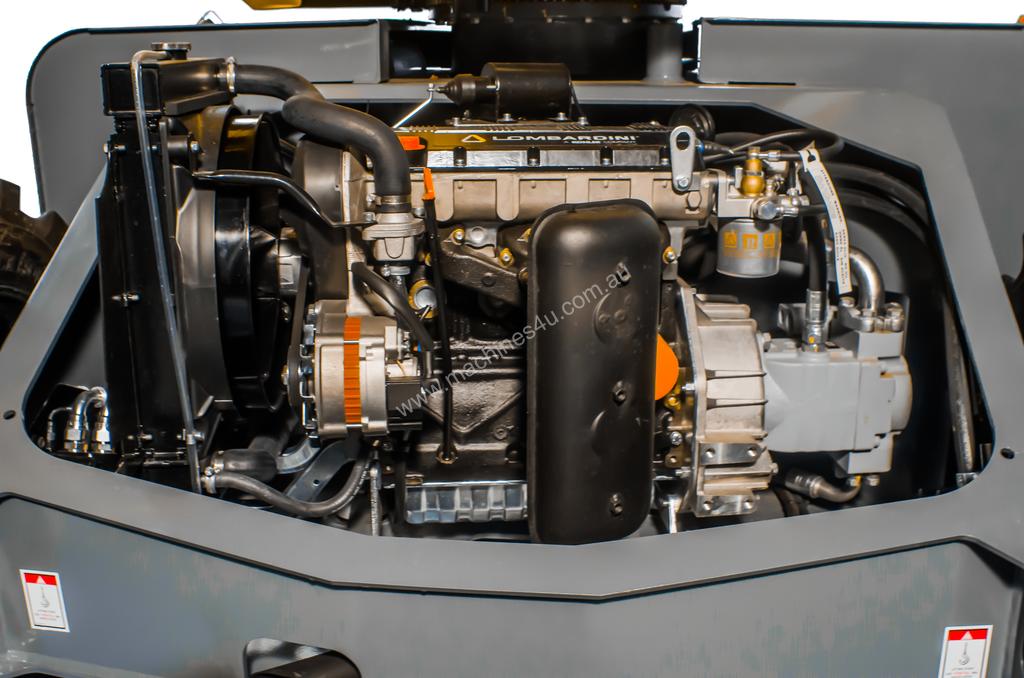

Engine Manufacturer : Deutz
Engine Model : Not Available
Engine Power (kw) : 21
Drive Type : 4 Wheel Drive
Transmission Manufacturer : To Be Confirmed
Transmission Type : To Be Confirmed
Steering Type : Hydraulic
Steering Modes : 3 Steering Modes (Front Wheel, All-Wheel and Crab Steer)
Parking Brake : Not Available
Service Brake : Not Available
Axle Manufacturer : To Be Confirmed
Joystick Manufacturer : Not Available
 Hydraulic System :
Hydraulic System Maximum Pressure (bar) : Not Available
Hydraulic Valve Manufacturer : Not Available
Maximum Hydraulic Pump Flow (L/min) : Not Available
 Safety Features :
Rotating Beacon : Yes
Alarm Reverse Warning : Yes
Horn : Yes
Tilt Angle Indicator Cut-Out (deg) : 5
 Tyres :
Tyre Types : Foam Filled
Tyre Manufacturer : Not Available
Tyre Sizes (mm) : 10.5/80-18
 Lighting and Electrical :
Electrical Circuit (V) : 12
Battery (Ah) : 95
