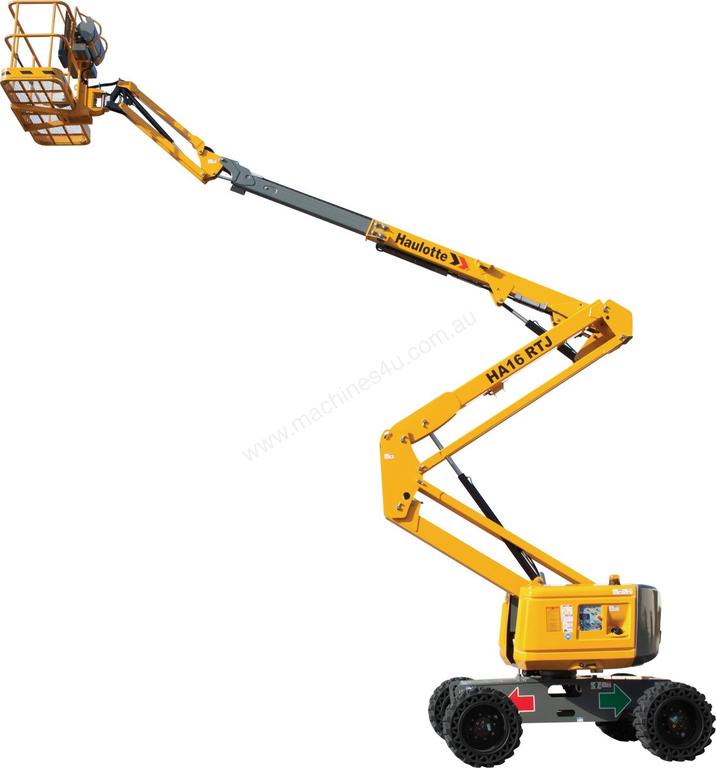

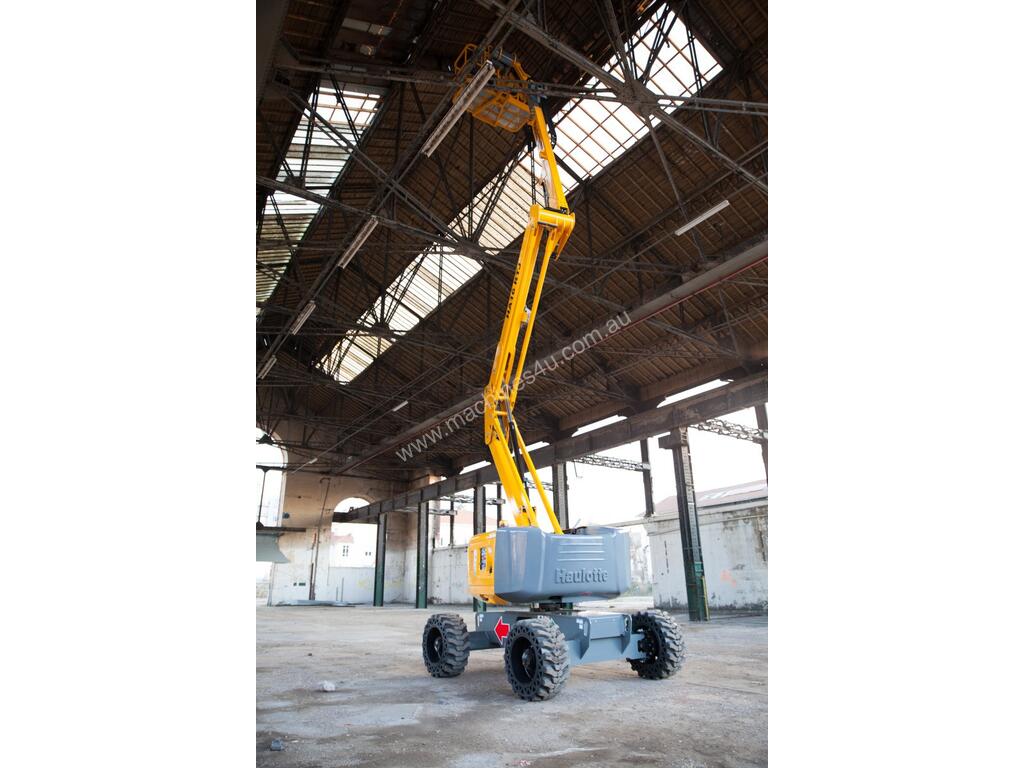

Haulotte HA 16 RTJ Pro Knuckle

SMITHFIELD, NSW

Haulotte HA 16 RTJ pro knuckle boom lift for sale providing a platform working height of 14 m with a horizontal reach of 8.3 m and a rated capacity of 230 kg.

Haulotte HA 16 RTJ pro diesel powered knuckle boom lift available for sale. This Haulotte knuckle boom lift has an overall height of 2.30 metres stowed, a width of 2.44 metres weighing in at 6650 kilograms. The Haulotte HA 16 RTJ pro straight boom lift features a maximum platform working height of 14 meters with a maximum platform height of 16 meters. This knuckle boom lift has a drive speed of 5.0 km/h with a platform rotation of 165 degrees capable of lifting 230 kg. Haulotte boom lifts come with a 1-year factory warranty and suitable for the construction, mining and materials industries.

 Operating Limits
Platform Working Height Maximum (m) : 14
Platform Height Maximum (m) : 16
Horizontal Reach : 8.3
Maximum Drive Speed Stowed (km/h) : 5.6
Turntable Rotation (deg) : 360
Platform Rotation (deg) : 165
Platform Occupancy Indoor : 2
Platform Rated Capacity Indoors (kg) : 230
Platform Occupancy Outdoor : 2
Platform Rated Capacity Outdoors (kg) : 230
Wind Speed Rating (km/h) : Not Available
 Dimensions :
Height Stowed (m) : 2.3
Width Stowed (m) : 2.44
Outside Turning Radius (m) : 3.75
Track (m) : Not Available
Wheelbase Axle to Axle (m) : 2.1
Ground Clearance (m) : 0.38
Platform Width Outside (m) : 0.91
Platform Length Outside (m) : 2.44
Platform Length with Extension (m) : Not Available
 Weights :
Unit Weight (kg) : 6650
Occupied Floor Pressure (kg/m2) : Not Available
Worst Case Static Wheel Pressure (psi) : Not Available
Worst Case Static Wheel Load (kg) : Not Available
 Operating Environments :
Rated for Outdoor Use : Yes
Minimum Operating Temperature (C) : Not Available
Maximum Operating Temperature (C) : Not Available
Pick and Carry (Travelling) Maximum Side Slope (deg) : Not Available
Pick and Carry (Travelling) Maximum Decline Slope (deg) : Not Available
Pick and Carry (Travelling) Maximum Incline Slope (deg) : Not Available
Lifting (Stationary) Maximum Decline Slope (deg) : Not Available
Sound Pressure in Cabin (dBA) : Not Available
Vibration Levels Transmitted to Body (m/s2) : Not Available
Sound Power Level (dB) : Not Available
Vibration Level at Operators Hands (m/s2) : Not Available
Vibration Levels at Operator's Feet (m/s2) : Not Available
 Standard Features :
Proportional Joystick : Yes
 Fluid Capacities :
Diesel (LTRS) : 62
Engine Oil (LTRS) : Not Available
Coolant (LTRS) : Not Available
Hydraulic Oil (LTRS) : 76
 Drive Components :
Engine Manufacturer : Kubotu
Engine Model : Not Available
Engine Power (kw) : 26
Drive Type : 4 Wheel Drive
Transmission Manufacturer : To Be Confirmed
Transmission Type : To Be Confirmed
Steering Type : Hydraulic
Steering Modes : 3 Steering Modes (Front Wheel, All-Wheel and Crab Steer)
Parking Brake : Not Available
Service Brake : Not Available
Axle Manufacturer : To Be Confirmed
Joystick Manufacturer : Not Available
 Hydraulic System :
Hydraulic System Maximum Pressure (bar) : Not Available
Hydraulic Valve Manufacturer : Not Available
Maximum Hydraulic Pump Flow (L/min) : Not Available
 Safety Features :
Rotating Beacon : Yes
Alarm Reverse Warning : Yes
Horn : Yes
Tilt Angle Indicator Cut-Out (deg) : 5
 Tyres :
Tyre Types : Foam Filled
Tyre Manufacturer : Not Available
Tyre Sizes (mm) : 14x17.5
 Lighting and Electrical :
Electrical Circuit (V) : 12
Battery (Ah) : 95
