Haulotte HT 23 RTJ

SMITHFIELD, NSW

Maximum Rated Capacity: 230kg
Maximum Lift Height: 22.5m

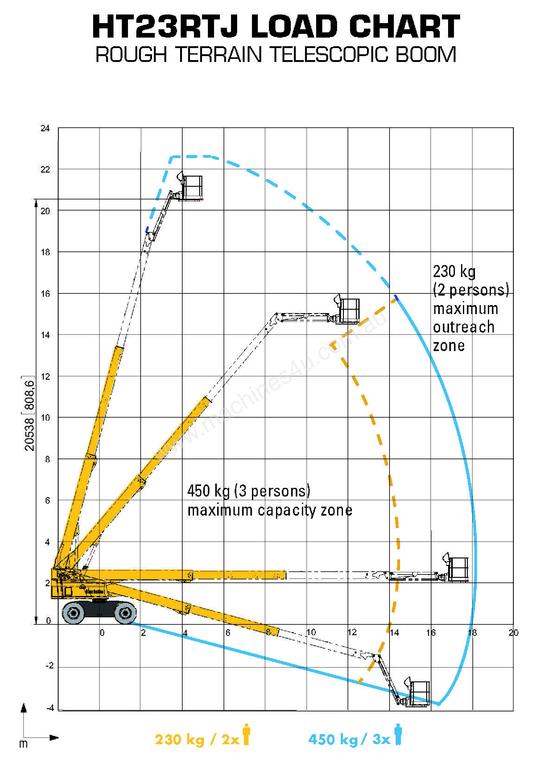

Maximum Forward Reach: 18.3m
Length: 10.4m
Width: 2.47m
Height: 2.7m
Dry Weight: 13400kg
Operator License Required

The Haulotte HT 23 RTJ is available for hire and sales Australia wide. Refer to the TSHA licensing matrix for detailed licensing requirements to operate this equipment.

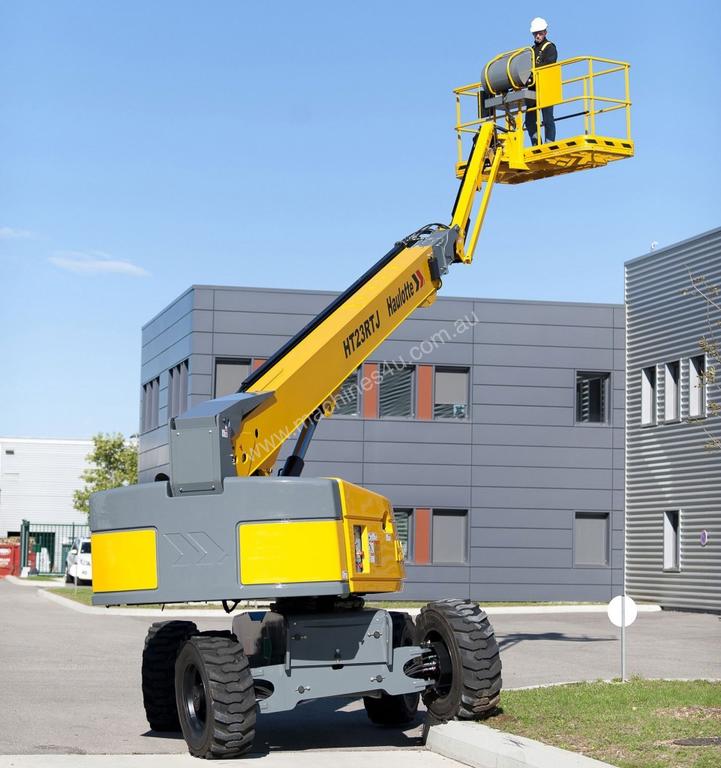

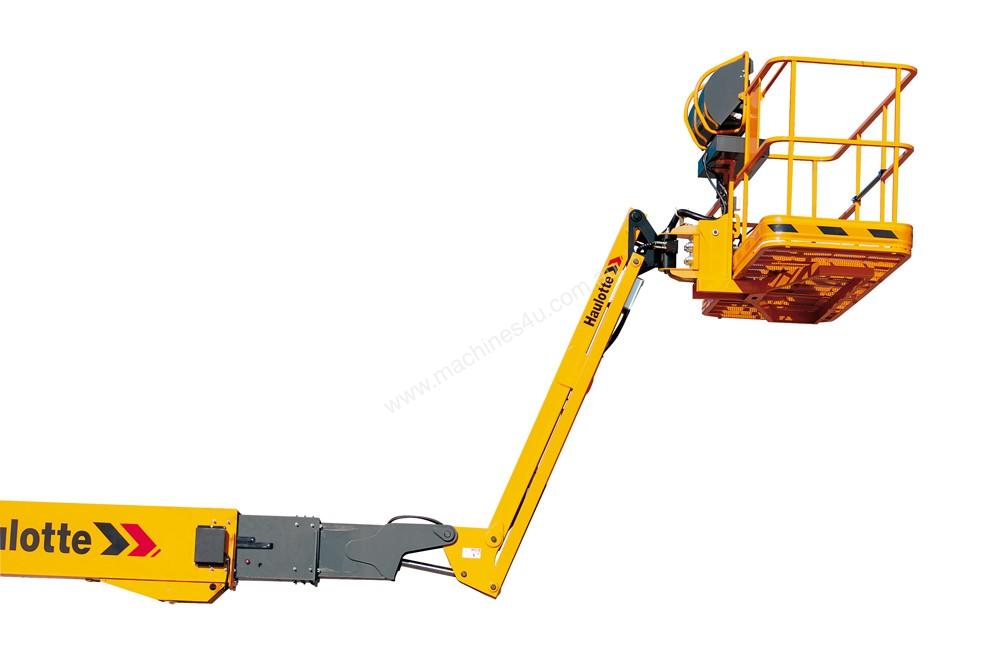

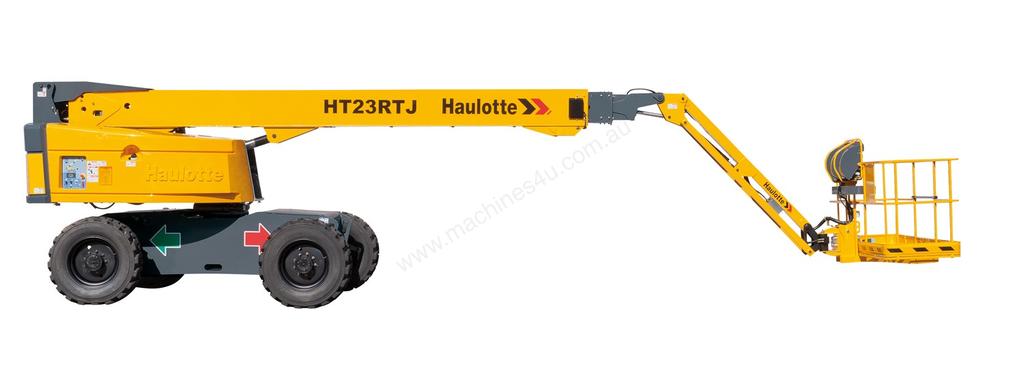

The Haulotte HT 23 RTJ boom lift is a diesel telescopic platform for workers and material lifting, suitable across all major industries and applications. Featuring outstanding performance, the HT 23 RTJ can lift a dual load capacity of 230/450kg at at maximum outreach of 18.3 meters. Optimal productivity is achieved with a lifting speed of 56 seconds, four wheel drive and steer with fully proportional and simultaneous movements. The Haulotte HT 23 RTJ features best comfort and safety with a rigid boom and single controls for both steering axles. The maintenance time is optimized with easy access to all components of the machine, simplified and easy boom maintenance and a new fully modular platform/basket that introduces a rich user experience. Suitable for outdoor use on multiple terrain types, the Haulotte HT 23 RTJ features 4 wheel drive and steer, automatic differential lock, front oscillating axle, proportional control, on-board generator as standard components.

SPECIFICATIONS

 Operating Limits
Platform Working Height Maximum (m) : 22.5
Platform Height Maximum (m) : 20.5
Horizontal Reach : 18.3
Maximum Drive Speed Stowed (km/h) : 6.5
Turntable Rotation (deg) : 360
Platform Rotation (deg) : 180
Platform Occupancy Indoor : 3
Platform Rated Capacity Indoors (kg) : 450
Platform Occupancy Outdoor : 3
Platform Rated Capacity Outdoors (kg) : 450
Wind Speed Rating (km/h) : 45

 Dimensions :
Height Stowed (m) : 2.7
Width Stowed (m) : 2.47
Outside Turning Radius (m) : 3,4
Wheelbase Axle to Axle (m) : 2.5
Ground Clearance (m) : 0.34
Platform Width Outside (m) : 2.44
Platform Length Outside (m) : 0.91

 Weights :
Unit Weight (kg) : 13400

 Operating Environments :
Rated for Outdoor Use : Yes
Pick and Carry (Travelling) Maximum Side Slope (deg) : 5
Pick and Carry (Travelling) Maximum Decline Slope (deg) : 5
Pick and Carry (Travelling) Maximum Incline Slope (deg) : 5
Lifting (Stationary) Maximum Decline Slope (deg) : 5

 Drive Components :
Engine Manufacturer : Kubotu
Engine Power (kw) : 36.5
Drive Type : 4 Wheel Drive
Steering Type : Hydraulic

 Safety Features :
Alarm Reverse Warning : Yes

 Tyres :
Tyre Types : Foam Filled
Tyre Sizes (mm) : 385/65 - 22.5

 Lighting and Electrical :
Electrical Circuit (V) : 12
