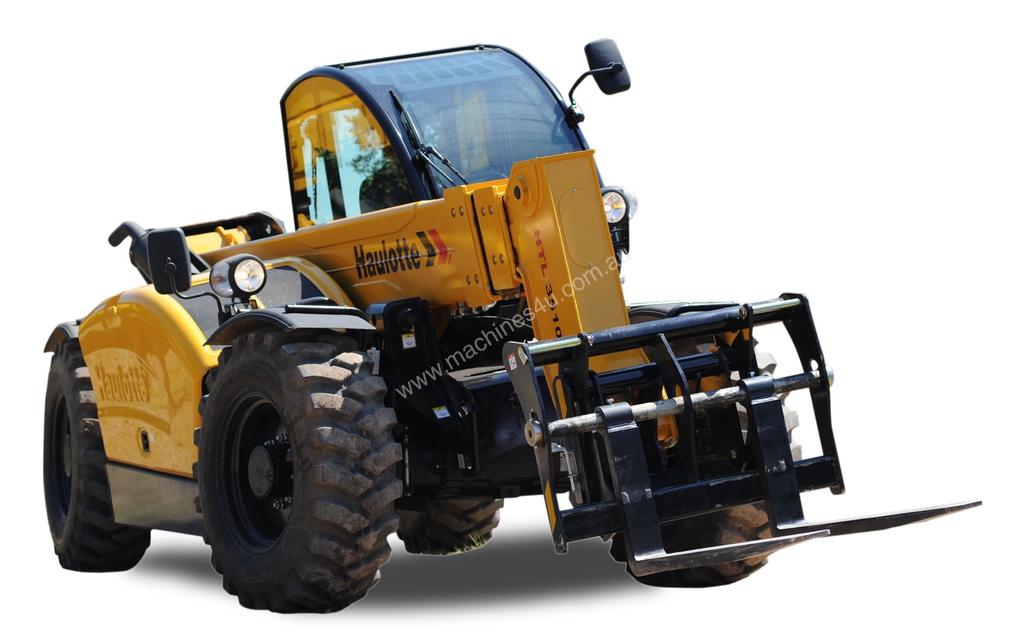

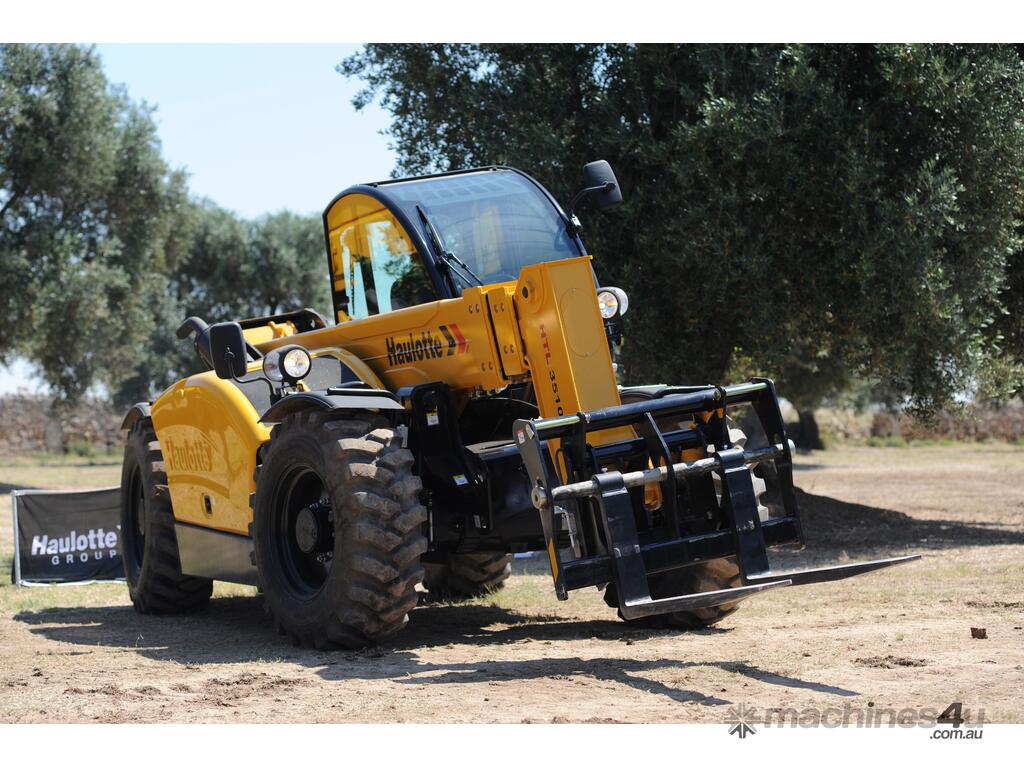

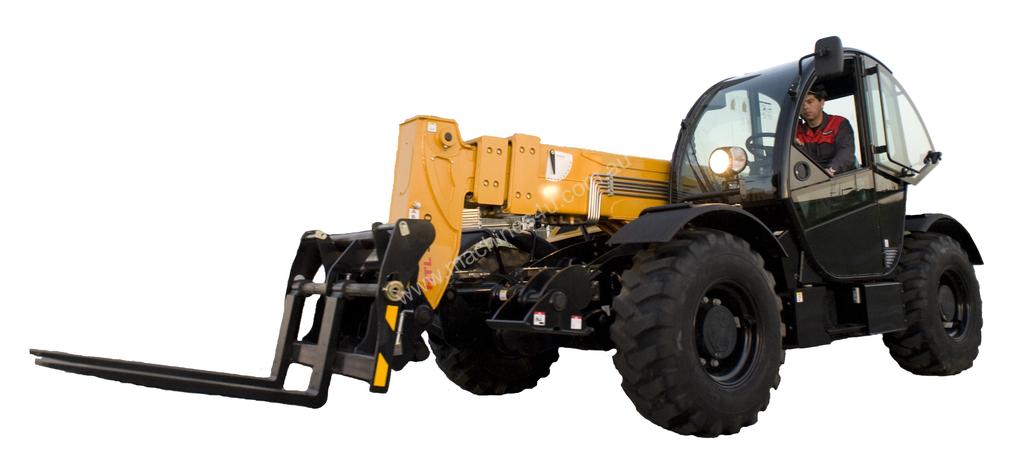

Haulotte HTL 3010 (Frame Levelling)

SMITHFIELD, NSW

(with frame levelling) for hire offering a maximum rated capacity (MRC) of 3500 kg with a maximum lift height of 10 m and an MRC of 500 kg at this height.

Haulotte telescopic handler available for hire providing a maximum forward reach of 7.2 metres with a maximum rated capacity of 500 kg at this reach. The Haulotte HTL 3010 telehandler (with frame levelling) has an overall length of 4.96 metres stowed, a width of 2.26 metres and a height of 2.42 metres, weighing in at 8570 kg. It features a hydrostatic transmission with a maximum speed of 35 kph, constant 4WD with three steering modes and features a 70 kw engine. Haulotte telehandlers are manufactured in Italy and suit the Agriculture, Construction, Defence, Events, Landscaping, Materials Handling, Mining, Recycling, Transportation industries. Haulotte telescopic handlers come with a 2 year factory warranty.

GTH Equipment has the largest and most comprehensive telehandler fleet in Sydney, NSW. All our equipment is extensively maintained and rental ready to the highest standards. Our pro-active safety systems for our fleet ensures GTH Equipment and the customers comply with current WHS regulations making it easy for the operators to complete their WHS requirements.

View licensing requirements to operate this telescopic handler.

*Price varies depending on duration of hire period.

SPECIFICATIONS

 Operating Limits
Maximum Rated Capacity (kg) : 3500
Maximum Lift Height at Forks (m) : 10
Rated Capacity at Maximum Lift Height (kg) : 2000
Forward Reach at Maximum Lift Height (m) : 2.2
Maximum Forward Reach (m) : 7.2
Rated Capacity at Maximum Forward Reach (kg) : 500
Fork Tilt Upper (deg) : 18
Fork Tilt Lower (deg) : 104
Wind Speed Rating (km/h) : 36

 Operating Environments :
Frame Levelling +/- (deg) : 10
Pick and Carry (Travelling) Maximum Side Slope (deg) : 5
Pick and Carry (Travelling) Maximum Decline Slope (deg) : 10
Pick and Carry (Travelling) Maximum Incline Slope (deg) : 14
Lifting (Stationary) Maximum Side Slope (deg) : 3
Lifting (Stationary) Maximum Decline Slope (deg) : 3
Lifting (Stationary) Maximum Incline Slope (deg) : 5

 Dimensions :
Height Stowed (m) : 2.42
Width Stowed (m) : 2.26
Track (m) : 1.88
Cabin Width (m) : 0.96
Wheelbase Axle to Axle (m) : 2.78
Length from Rear to Front of Carriage (m) : 4.96
Outside Turning Radius (m) : 3.7
Ground Clearance (m) : 0.42
Obstruction Angle (deg) : 30

 Weights :
Unit Weight (kg) : 8570

 Safety Features :
Maximum Load Capacity Limiter : Yes
Load Moment Indicator (LMI) : Yes
Load Management System (LMS) : Yes
Adaptive Load Control to EN15000 : No
Reverse Camera : Yes
ROPS Certified Cabin : Yes
FOPS Certified Cabin : Yes
Front Windscreen Protection Guard : Yes
Rotating Beacon : Yes
Horn : Yes
Alarm Reverse Warning : Yes

 Standard Features :
Factory Air Conditioning : Yes
Proportional Joystick : Yes
Mirror Left Side : Yes
Mirror Right Side : Yes
Roof Window Wiper : No
Auxiliary Quick Release Connectors at Boom Head : Yes
Cabin Heater : Yes
Quick Release Carriage Adaptor : Yes
Steering System Automatic Self Alignment : Yes

 Optional Extras :
Exterior Work Lights : Yes
Work Platform Compatible : No
Hydraulic Winch Pre-Arrangement : No
Level 1 Mine Spec : Yes
Level 2 Mine Spec : Yes
Construction Pack : Yes
Conditional Registration : Yes

 Fluid Capacities :
Diesel (LTRS) : 120
Hydraulic Oil (LTRS) : 103
Engine Manufacturer : Perkins
Engine Power (kw) : 70
Drive Type : 4 Wheel Drive
Transmission Type : Hydrostatic
Steering Type : Hydraulic
Steering Modes : 3 Steering Modes (Front Wheel, All-Wheel and Crab Steer)
Parking Brake : Electronic

 Tyres :
Tyre Types : Pneumatic
Tyre Sizes (mm) : 405/70-24

 Lighting and Electrical :
Electrical Circuit (V) : 12
Full Road Lighting and Blinker Kit : Yes
Manual Battery Isolater : Yes

 Maintenance Documentation (Manufacturer Supplied) :
Manual supplied for Operators (PDF) : Yes
Manual supplied for Spare Parts (PDF) : Yes
Manual supplied for Service/Workshop (PDF) : Yes
Schematic Diagram for Electrical System (PDF) : Yes
Schematic Diagram for Hydraulic System (PDF) : Yes
Preventative Maintenance Schedule Supplied : Yes
Preventative Maintenance Schedule Supplied with Cost Forecast : No
Plant Risk Assessment Model Specific (PDF) : Yes
Service Bulletins and Upgrades available : No
Service Bulletins and Upgrades available online : No
