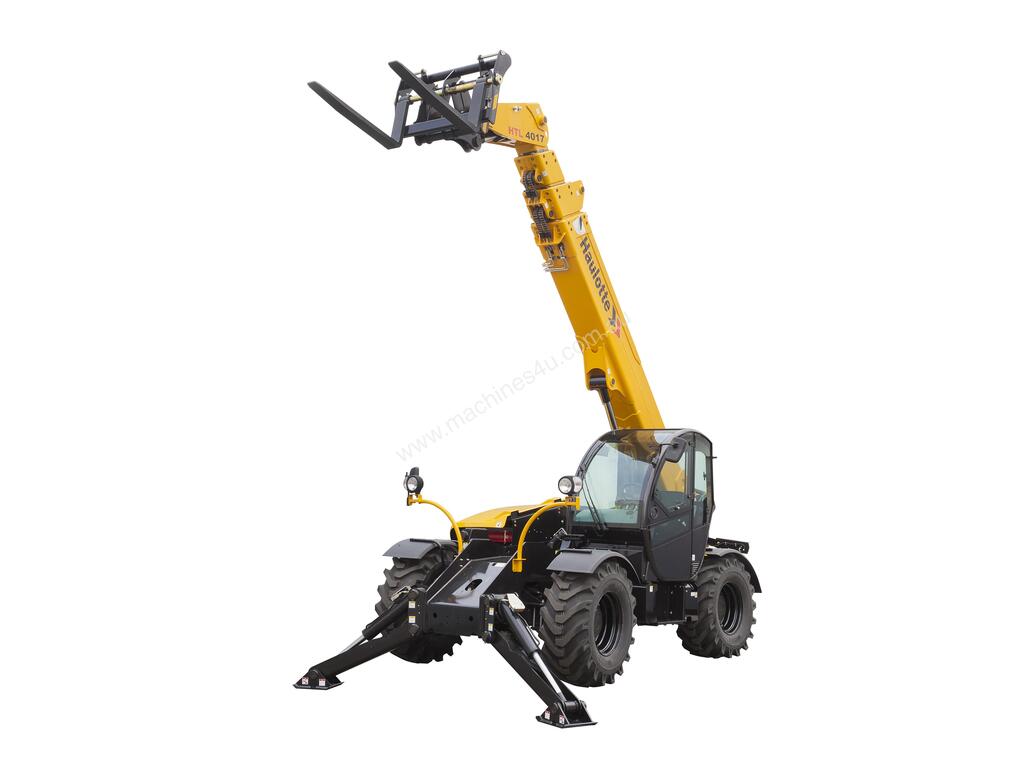

Haulotte HTL 4017
Haulotte HTL 4017 : $152,800 AUD ($168,080 Inc. GST)

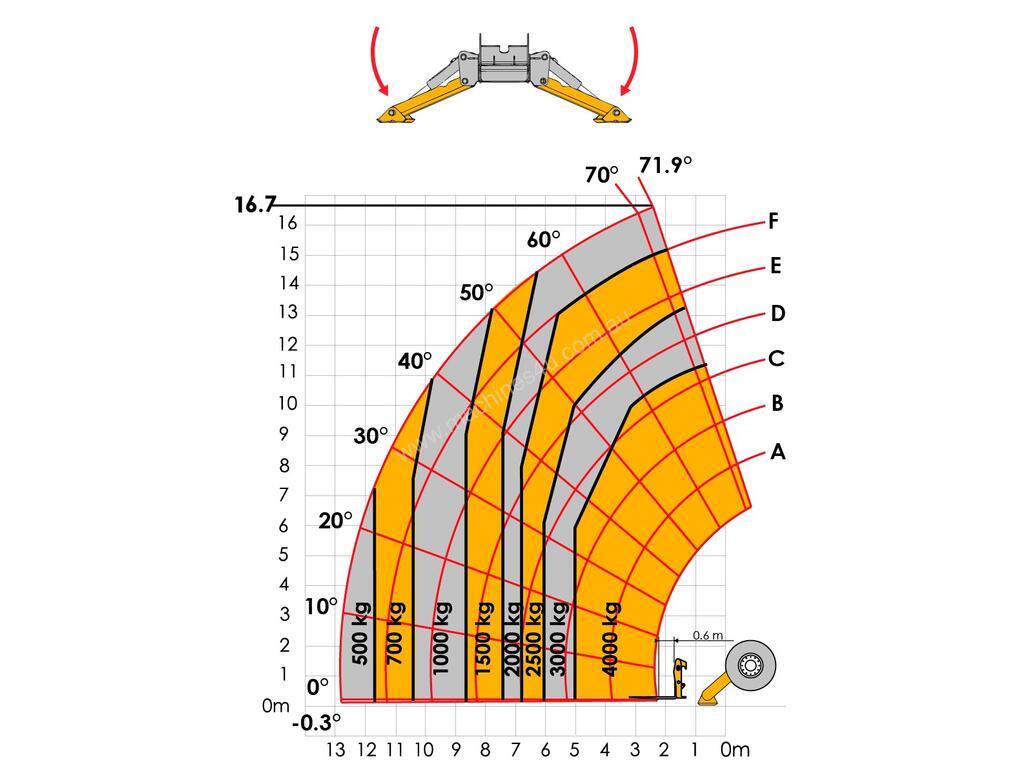

offering a maximum rated capacity (MRC) of 4000 kg with a maximum lift height of 16.7 m and an MRC of 2500 kg at this height.
New Haulotte telescopic handler available for immediate sale providing a maximum forward reach of 12.85 metres with a maximum rated capacity of 700 kg at this reach. The Haulotte HTL 4017 telehandler has an overall length of 6.70 metres stowed, a width of 2.43 metres and a height of 2.60 metres, weighing in at 12000 kg. It features a hydrostatic transmission with a maximum speed of 34 kph, constant 4WD with three steering modes and features a 74.9 kw Deutz engine. Haulotte telehandlers are manufactured in Italy and suit the Agriculture, Construction, Defence, Events, Heavy Industry, Landscaping, Materials Handling, Mining, Oil & Gas, Pipeline, Power Generation, Railway, Recycling, Solar Power, Transportation industries. Haulotte telescopic handlers come with a 2 year factory warranty.
Specifications
Operating Limits
Maximum Rated Capacity (kg) : 4000
Maximum Lift Height at Forks (m) : 16.7
Rated Capacity at Maximum Lift Height (kg) : 2500
Forward Reach at Maximum Lift Height (m) : 240
Maximum Forward Reach (m) : 12.85
Rated Capacity at Maximum Forward Reach (kg) : 700
Fork Tilt Upper (deg) : 18
Fork Tilt Lower (deg) : 104
Maximum Drive Speed Stowed (km/h) : Not Available
Wind Speed Rating (km/h) : 36
Operating Environments :
Frame Levelling +/- (deg) : 10
Pick and Carry (Travelling) Maximum Side Slope (deg) : 6
Pick and Carry (Travelling) Maximum Decline Slope (deg) : 10
Pick and Carry (Travelling) Maximum Incline Slope (deg) : 14
Lifting (Stationary) Maximum Side Slope (deg) : 3
Lifting (Stationary) Maximum Decline Slope (deg) : 3
Lifting (Stationary) Maximum Incline Slope (deg) : 5
Sound Pressure in Cabin (dBA) : Not Available
Sound Power Level (dB) : Not Available
Minimum Operating Temperature (C) : Not Available
Maximum Operating Temperature (C) : Not Available
Dimensions :
Height Stowed (m) : 2.6
Width Stowed (m) : 2.43
Track (m) : 1.93
Width with Stabilisers Down (m) : 3.34
Cabin Width (m) : 0.96
Wheelbase Axle to Axle (m) : 2.89
Length from Rear to Front Wheels (m) : Not Available
Length from Rear to Front of Carriage (m) : 6.7
Outside Turning Radius at Tip of Forks (m) : Not Available
Outside Turning Radius (m) : Not Available
Ground Clearance (m) : 0.5
Obstruction Angle (deg) : 29
Departure Angle (deg) : Not Available
Fork Size (W x H x L) (mm) : Not Available
Minimum Space Between Forks (m) : Not Available
Maximum Space Between Forks (m) : Not Available
Weights :
Unit Weight (kg) : 12000
