Manitou MH 25-4T Buggie

SMITHFIELD, NSW

available for hire providing a lift capacity of 2500 kg, a lifting height of 3.74 m and a travelling speed of 14 km/h.

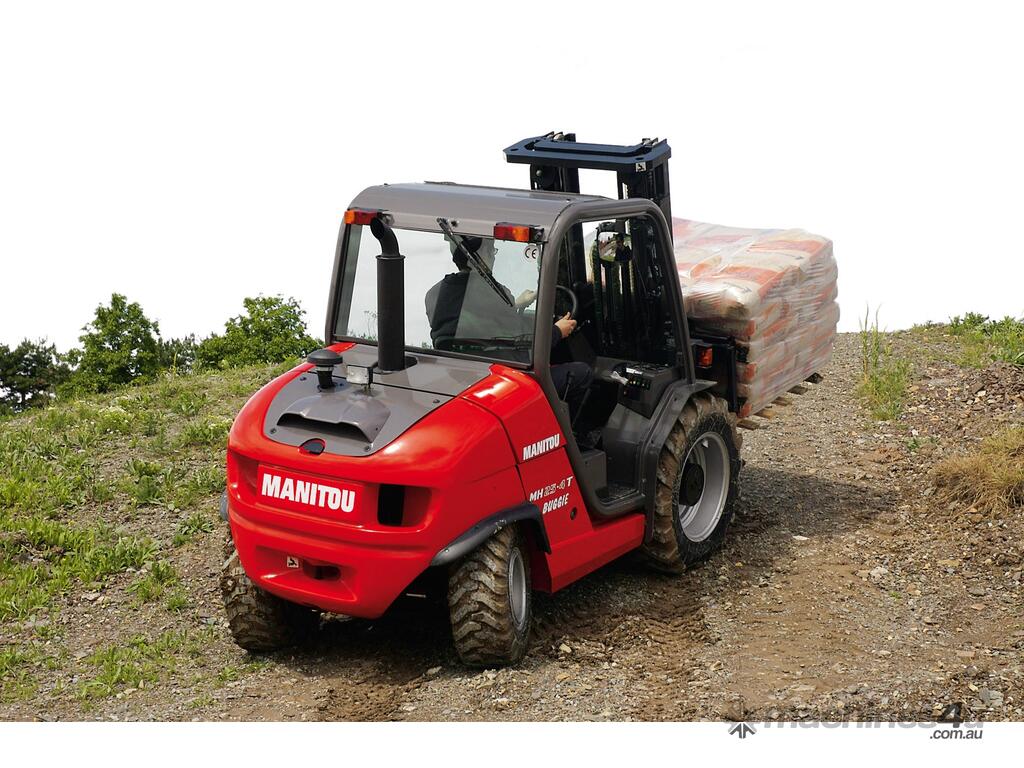

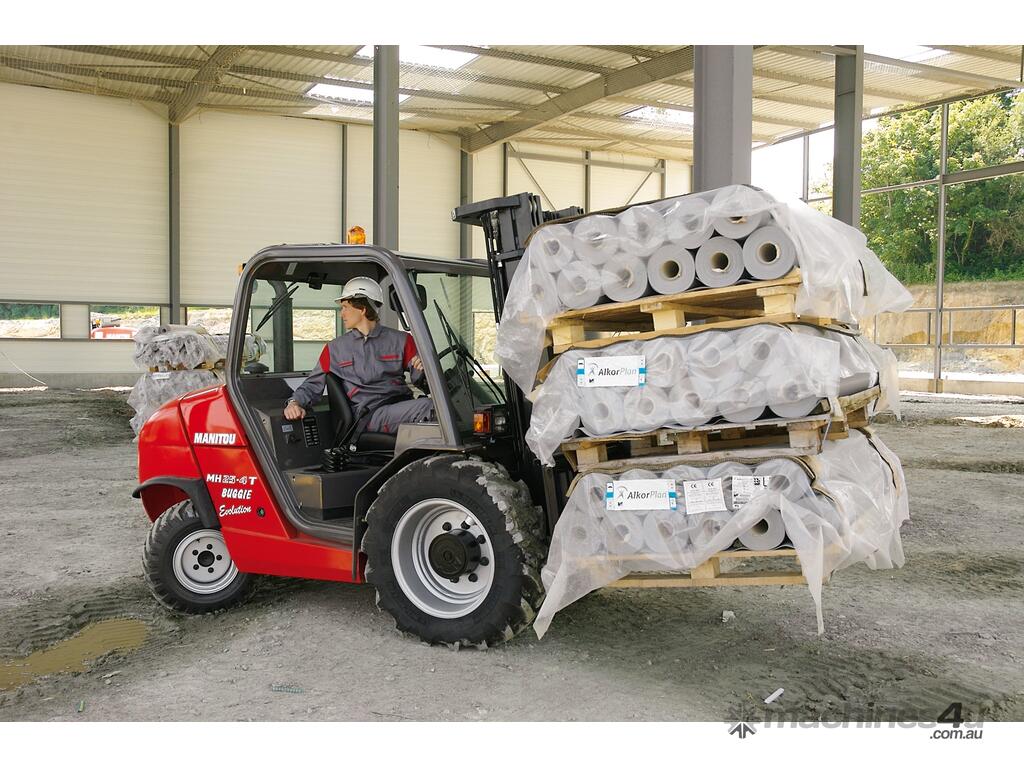

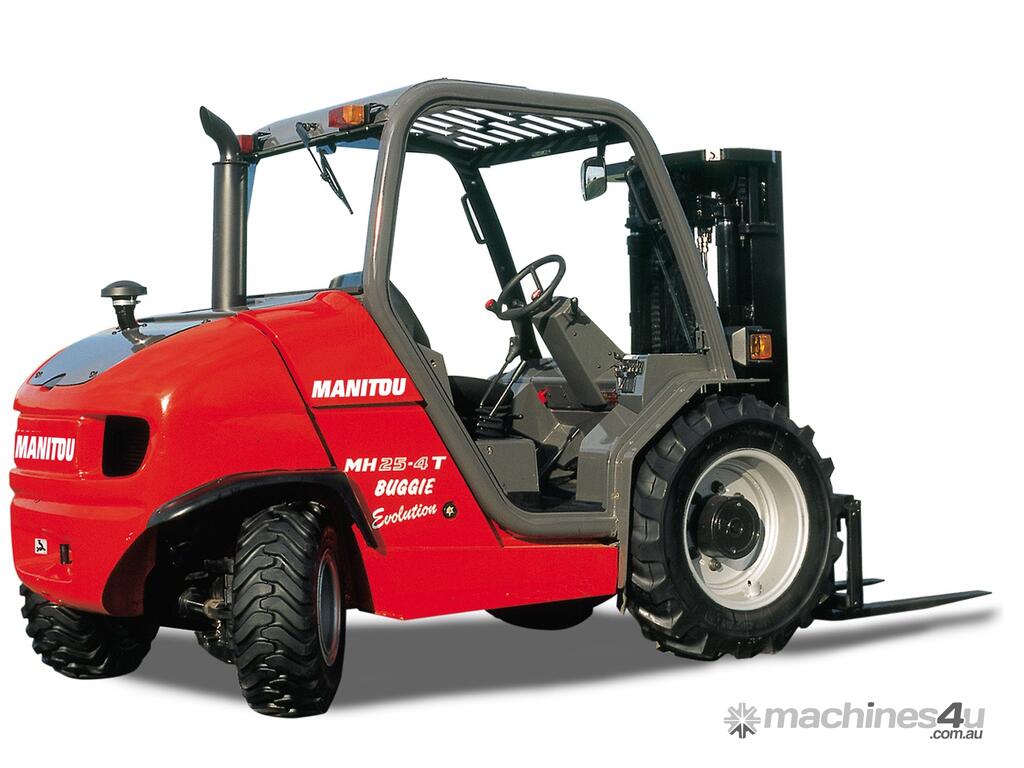

This diesel powered Manitou rough terrain forklift features 4 wheel drive rough terrain capability. With an overall height of 1.99 metres, a width of 1.45 meters weighing in at 4350 kilograms. The Manitou MH 25-4T rough terrain forklift features a Kubota 44 kw diesel engine capable of travelling up to speeds of 14 km/h. Capable of lifting 2500 kg, this rough terrain forklift suits the Agriculture, Construction, Defence, Events, Heavy Industry, Landscaping, Materials Handling, Mining, Transportation industries.

GTH Equipment provides only highly maintained and rental ready equipment. Our pro-active safety systems for our fleet ensures GTH Equipment and our customers comply with current WHS regulations making it easy for the operators to complete their WHS requirements.

SPECIFICATIONS
Operating Limits
Maximum Rated Capacity (kg) : 2500
Maximum Lift Height at Forks (m) : 3.74
Rated Capacity at Maximum Lift Height (kg) : 1800
Maximum Drive Speed Stowed (km/h) : 14
Mast Tilt Forward (deg) : 10
Mast Tilt Backward (deg) : 12

Operating Environments :
Incline Gradability Loaded (deg) : 27
Incline Gradability Unloaded (deg) : 26
Sound Pressure in Cabin (dBA) : 81
Minimum Operating Temperature (C) : Not Available
Maximum Operating Temperature (C) : Not Available

Dimensions :
Height Stowed (m) : 1.99
Width Stowed (m) : 1.45
Track (m) : 1.16
Fork Carriage Width (m) : 1.26
Wheelbase Axle to Axle (m) : 1.8
Length from Rear to Front of Carriage (m) : 2.945
Ground Clearance (m) : 0.26
Mast Height Raised (m) : 4.469
Mast Height Lowered (m) : 1.945
Distance from Fork Face to Centre of Front Axle (mm) : 0.265
Mast Free Lift (m) : 1.216
Mast Ground Clearance (m) : 0.27
Fork Size (W x H x L) (mm) : 100 x 40 x 1100
Maximum Space Between Forks (m) : 1.06
Load Centre of Gravity (mm) : 600
Obstruction Angle (deg) : 49.5
Departure Angle (deg) : 44

Weights :
Unit Weight (kg) : 4350
Occupied Floor Pressure (kg/m2) : Not Available
Worst Case Static Wheel Pressure (psi) : Not Available
Worst Case Static Wheel Load (kg) : Not Available
Loaded Front Axle Load (kg) : 5.812
Loaded Rear Axle Load (kg) : 0.948
Unloaded Front Axle Load (kg) : 1.75
Unloaded Rear Axle Load (kg) : 2.51

Safety Features :
ROPS Certified Cabin : Yes
FOPS Certified Cabin : Yes
Front Windscreen Protection Guard : No
Rotating Beacon : Yes
Horn : Yes
Alarm Reverse Warning : Yes

Optional Extras :
Exterior Work Lights : Yes
Work Platform Compatible : Yes
Level 1 Mine Spec : Yes
Level 2 Mine Spec : Yes
Construction Pack : Yes
Conditional Registration : Yes

Fluid Capacities :
Diesel (LTRS) : 73.5
Engine Oil (LTRS) : 9.5
Coolant (LTRS) : 10
Hydraulic Oil (LTRS) : 95

Drive Components :
Engine Manufacturer : Kubotu
Engine Model : V2403-M-T-E3B
Engine Power (kw) : 44
Drive Type : 4 Wheel Drive
Transmission Manufacturer : Rexroth
Transmission Type : Hydrostatic
Steering Type : Hydraulic
Steering Modes : Rear Wheel Steer
Parking Brake : Electric Brakes
Axle Manufacturer : Not Available

Hydraulic System :
Lowering Mast Speed Loaded (m/s) : 0.5
Lowering Mast Speed Unloaded (m/s) : 0.6
Raising Mast Speed Loaded (m/s) : 0.6
Raising Mast Speed Unloaded (m/s) : 0.6
Hydraulic System Maximum Pressure (bar) : 125
Hydraulic Valve Manufacturer : Not Available
Maximum Hydraulic Pump Flow (L/min) : 77

Tyres :
Tyre Types : Pneumatic
Tyre Manufacturer : Not Available
Front Wheel Size (mm) : 280/80 R20 XMCL
Rear Wheel Size (mm) : 27.10-12 IC 30 14 PR

Lighting and Electrical :
Electrical Circuit (V) : 12
Battery (Ah) : Not Available
Full Road Lighting and Blinker Kit : Yes
Manual Battery Isolater : Not Available
