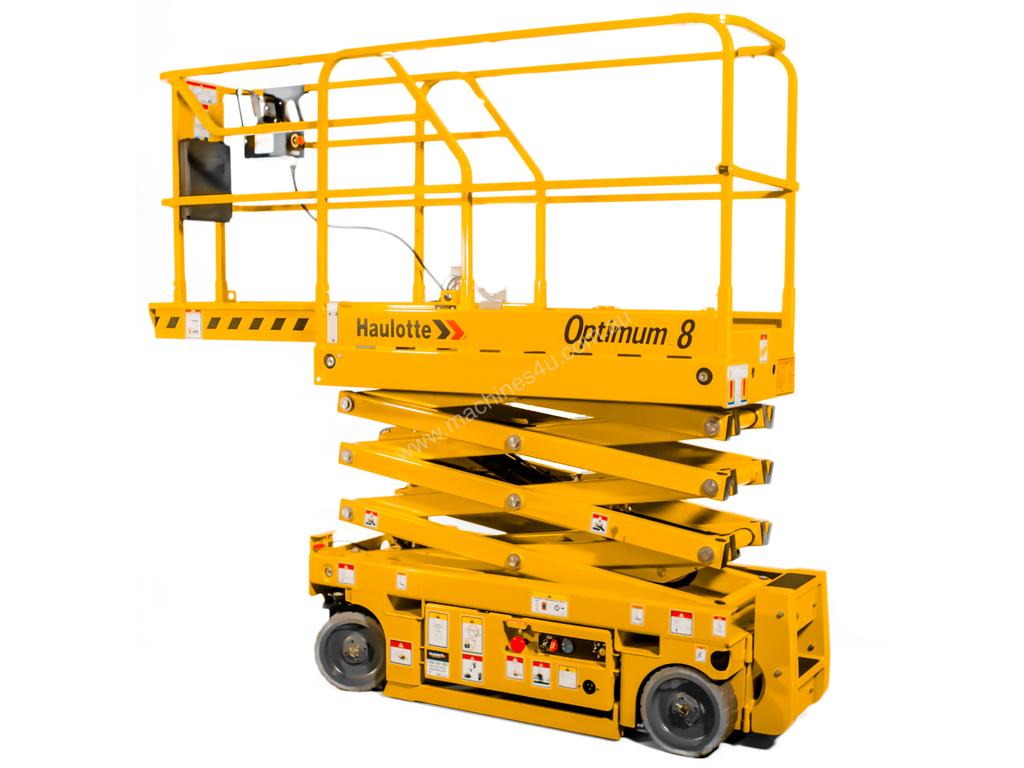

Haulotte Optimum 8 Scissor Lift

SMITHFIELD, NSW

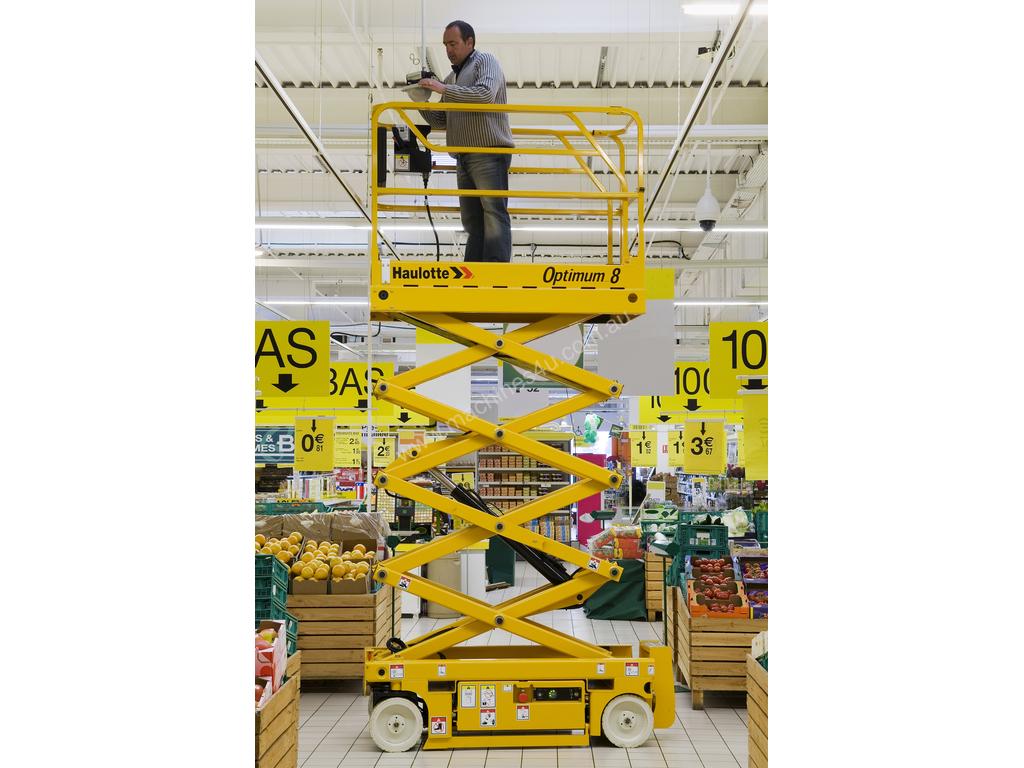

Haulotte Optimum 8 scissor lift for hire providing a platform capacity of 230 kg with a maximum working height of 7.76 m and a platform height of 5.76 m.

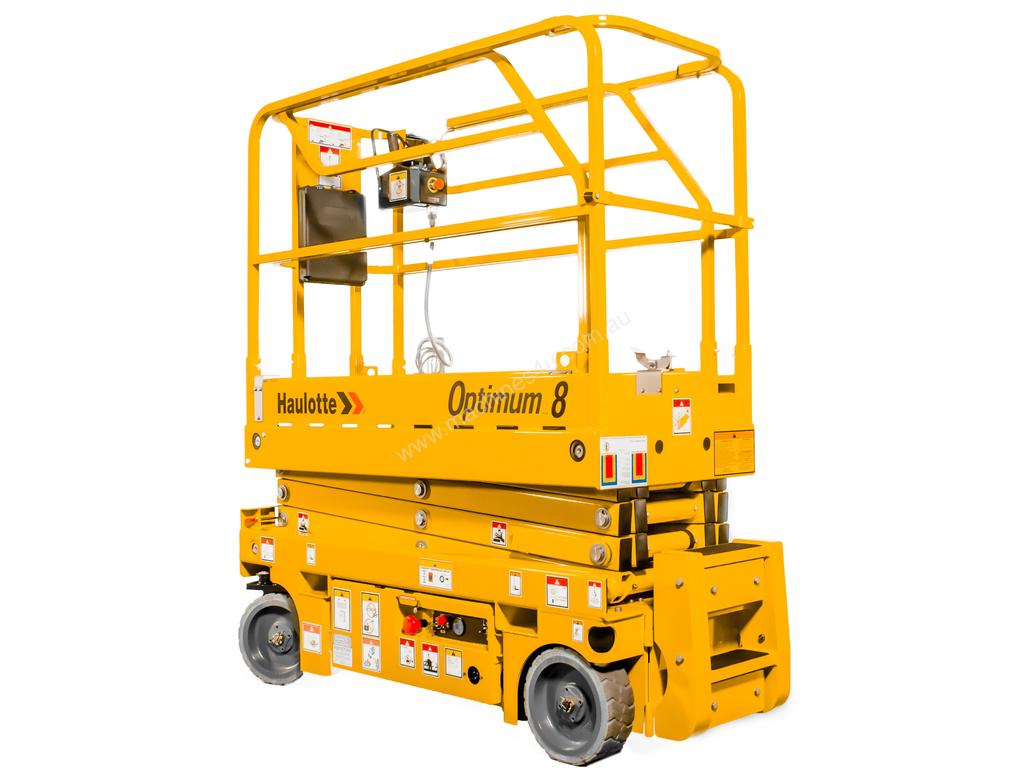

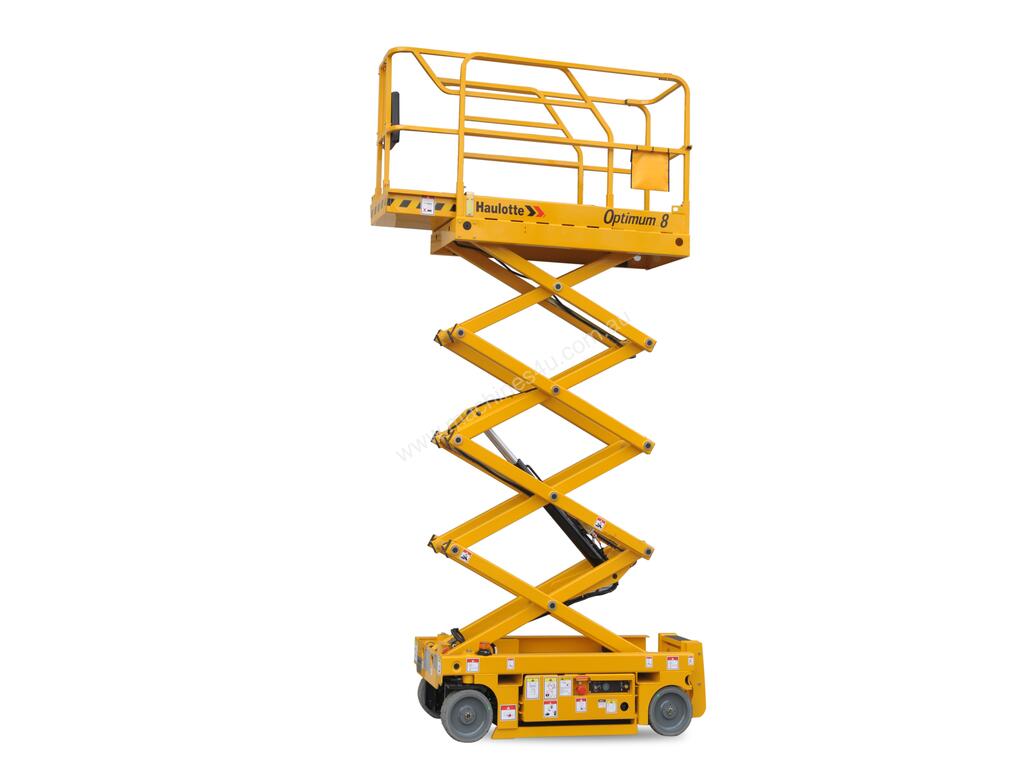

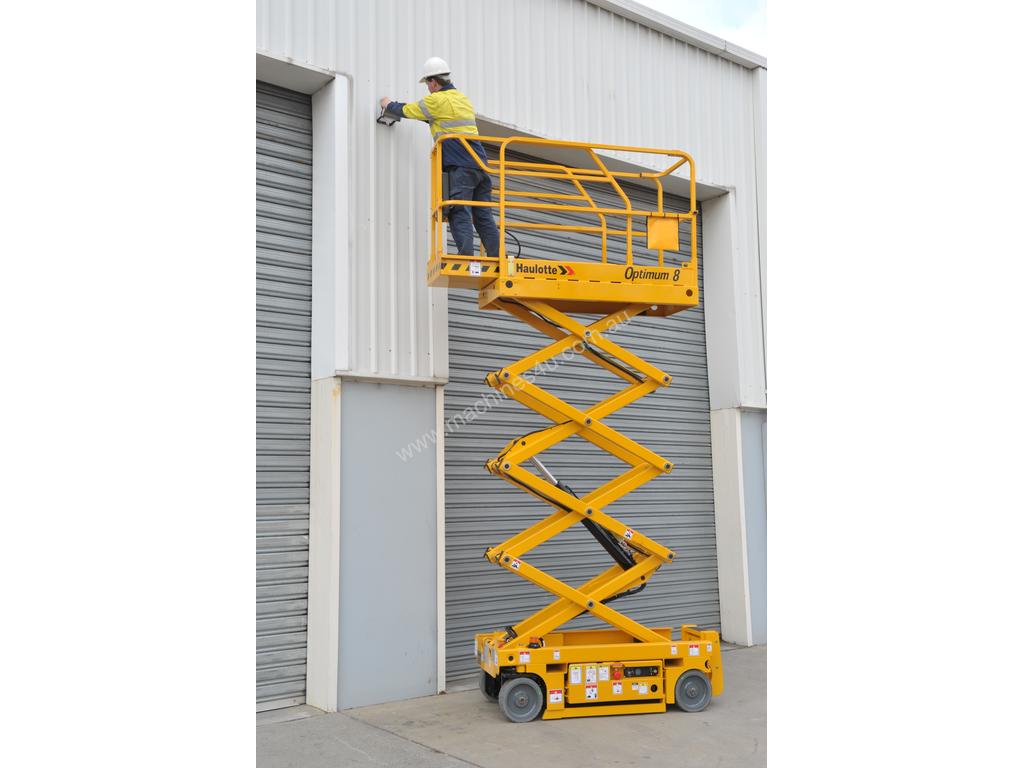

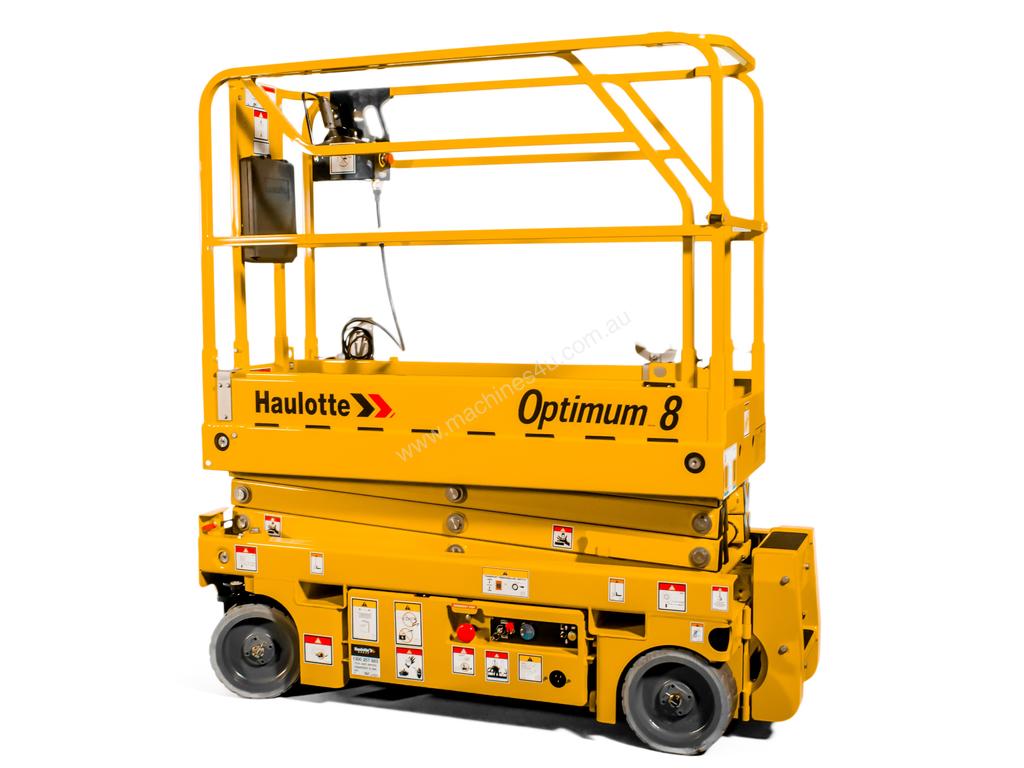

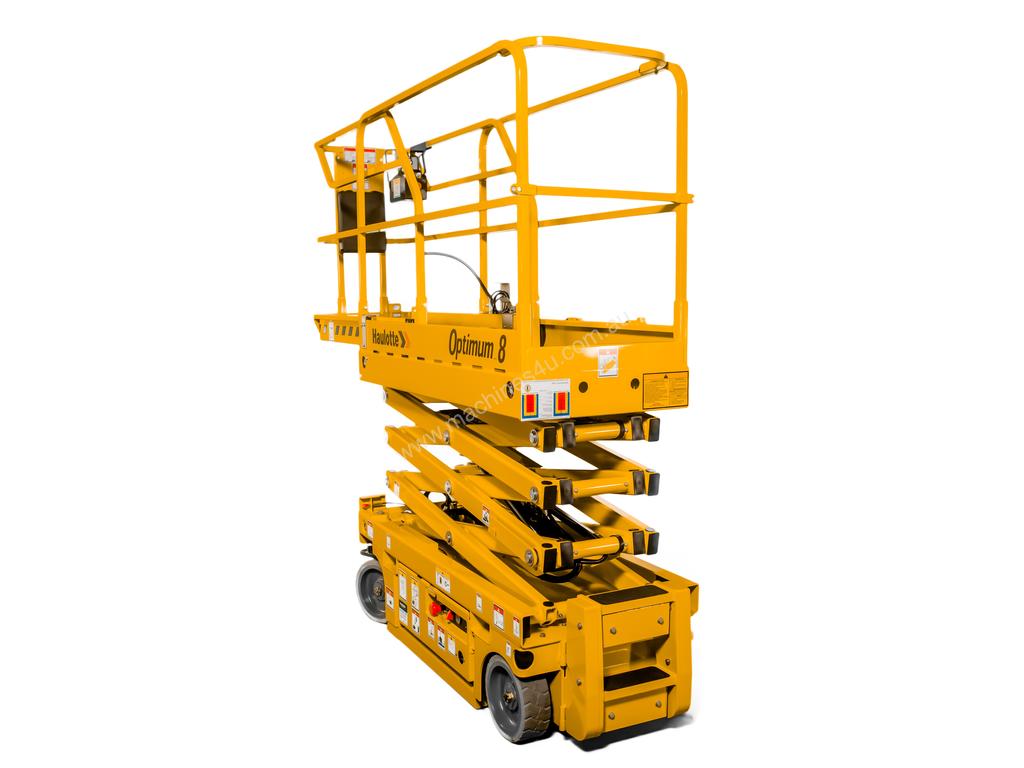

Haulotte Optimum 8 electric powered scissor lift available for hire or rental. This Haulotte scissor lift has an overall height of 2.00 metres stowed, a width of 0.76 metres weighing in at 1572 kilograms. The Haulotte Optimum 8 features a maximum platform working height of 7.76 meters with a maximum platform height of 5.76 meters. Haulotte scissor lifts are suitable for all industries.

Power Source Electric
Warranty 10% Price Guarantee
Country of Manufacture France
Operating Limits
Platform Working Height Maximum (m) 7.76
Platform Height Maximum (m) 5.76
Platform Occupancy Indoor 2
Platform Rated Capacity Indoors (kg) 230
Platform Occupancy Outdoor 1
Platform Rated Capacity Outdoors (kg) 120
Maximum Drive Speed Stowed (km/h) 4.5
Maximum Drive Speed Raised (km/h) 0.6
Wind Speed Rating (km/h) Not Available
Dimensions
Height Stowed (m) 2.00
Width Stowed (m) 0.76
Height Stowed with Rails Folded (m) Not Available
Outside Turning Radius (m) 1.70
Track (m) Not Available
Wheelbase Axle to Axle (m) 1.38
Ground Clearance (m) 0.08
Platform Width Outside (m) 0.68
Platform Length Outside (m) 1.73
Platform Length with Extension (m) 2.65
Weights
Unit Weight (kg) 1572
Occupied Floor Pressure (kg/m2) Not Available
Worst Case Static Wheel Pressure (psi) Not Available
Worst Case Static Wheel Load (kg) Not Available
Operating Environments
Rated for Outdoor Use Yes
Minimum Operating Temperature (C) Not Available
Maximum Operating Temperature (C) Not Available
Pick and Carry (Travelling) Maximum Side Slope (deg) Not Available
Pick and Carry (Travelling) Maximum Decline Slope (deg) Not Available
Pick and Carry (Travelling) Maximum Incline Slope (deg) Not Available
Lifting (Stationary) Maximum Decline Slope (deg) Not Available
Sound Pressure in Cabin (dBA) Not Available
Sound Power Level (dB) Not Available
Standard Features
Proportional Joystick Yes
Fluid Capacities
Diesel (Ltrs) Not Available
Engine Oil (Ltrs) Not Available
Coolant (Ltrs) Not Available
Hydraulic Oil (Ltrs) 20
Drive Components
Engine Manufacturer Deutz
Engine Model Not Available
Engine Power (kw) Not Available
Drive Type Rear Wheel Drive
Transmission Manufacturer To Be Confirmed
Transmission Type To Be Confirmed
Steering Type Hydraulic
Steering Modes Rear Wheel Steer
Parking Brake Not Available
Service Brake Not Available
Axle Manufacturer To Be Confirmed
Joystick Manufacturer Not Available
Hydraulic System
Hydraulic System Maximum Pressure (bar) Not Available
Hydraulic Valve Manufacturer Not Available
Maximum Hydraulic Pump Flow (L/min) Not Available
Safety Features
Rotating Beacon Yes
Horn Yes
Alarm Reverse Warning Standard
Tilt Angle? Cut-Out 2
Tyres
Tyre Types Solid Non-Marking
Tyre Manufacturer Not Available
Tyre Sizes (mm) 12.5x4.25
Lighting and Electrical
Electrical Circuit (V) 24

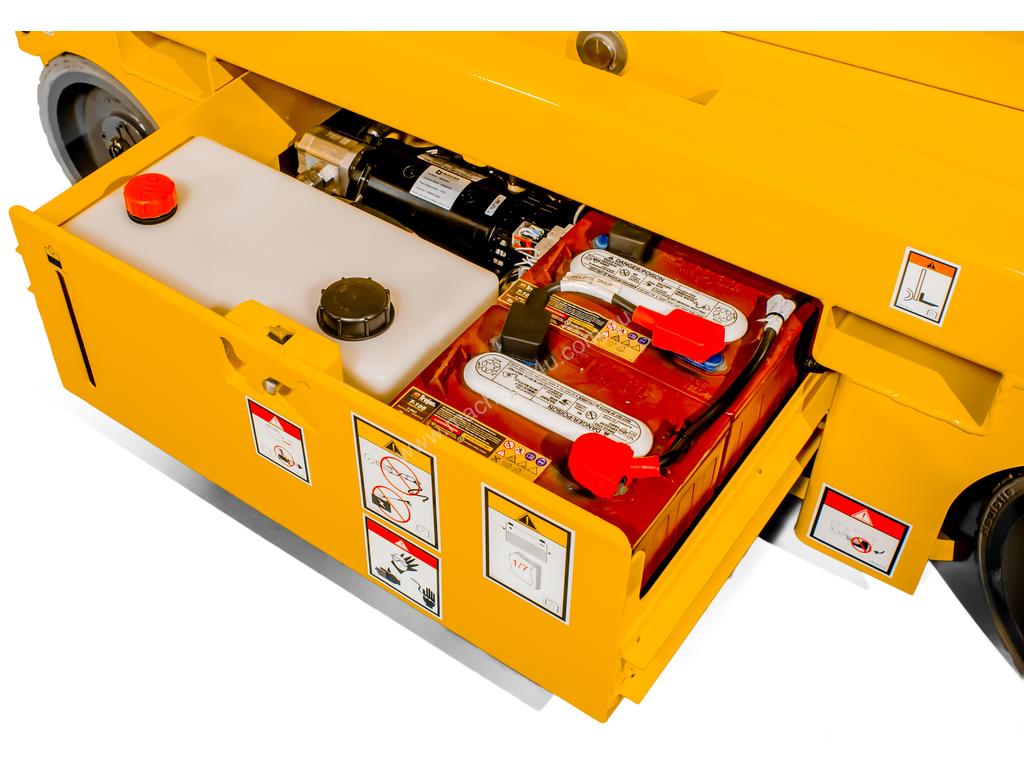

Battery (Ah) 185
Maintenance Documentation (Manufacturer Supplied)
Manual supplied for Operators (PDF) Yes
Manual supplied for Spare Parts (PDF) Yes
Manual supplied for Service/Workshop (PDF) Yes
Schematic Diagram for Electrical System (PDF) Yes
Schematic Diagram for Hydraulic System (PDF) Yes
Preventative Maintenance Schedule Supplied Yes
Preventative Maintenance Schedule Supplied with Cost Forecast Yes
Plant Risk Assessment Model Specific (PDF) Yes
Service Bulletins and Upgrades available Yes
Service Bulletins and Upgrades available online Yes
