Merlo P 34.7

SMITHFIELD, NSW

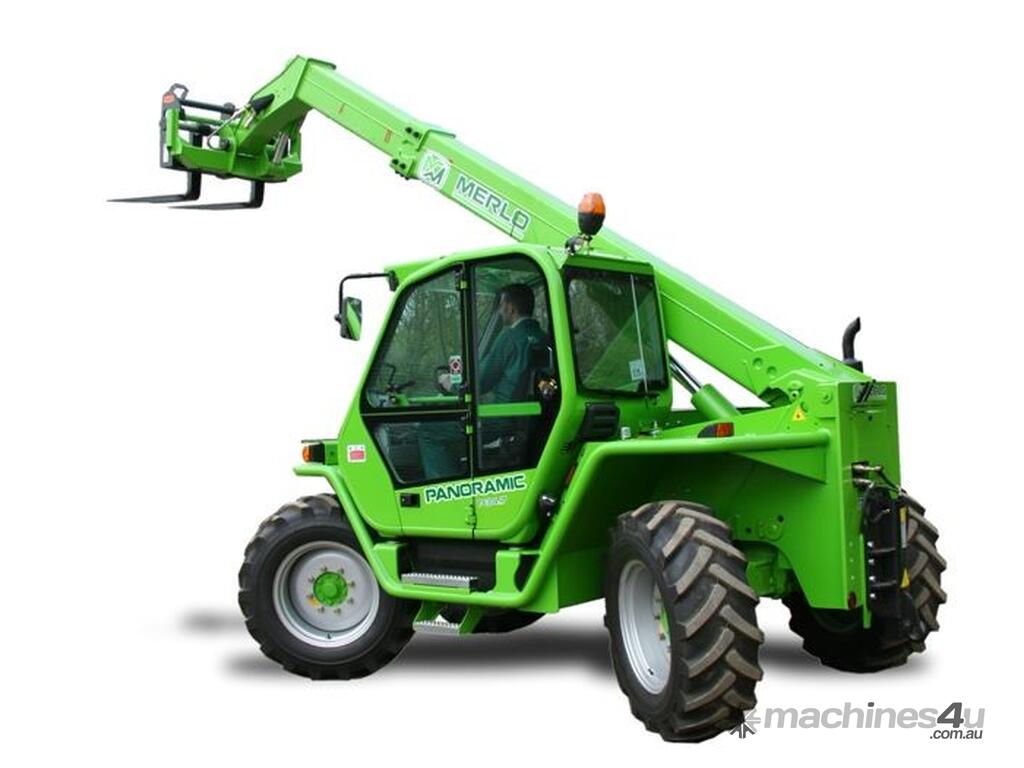

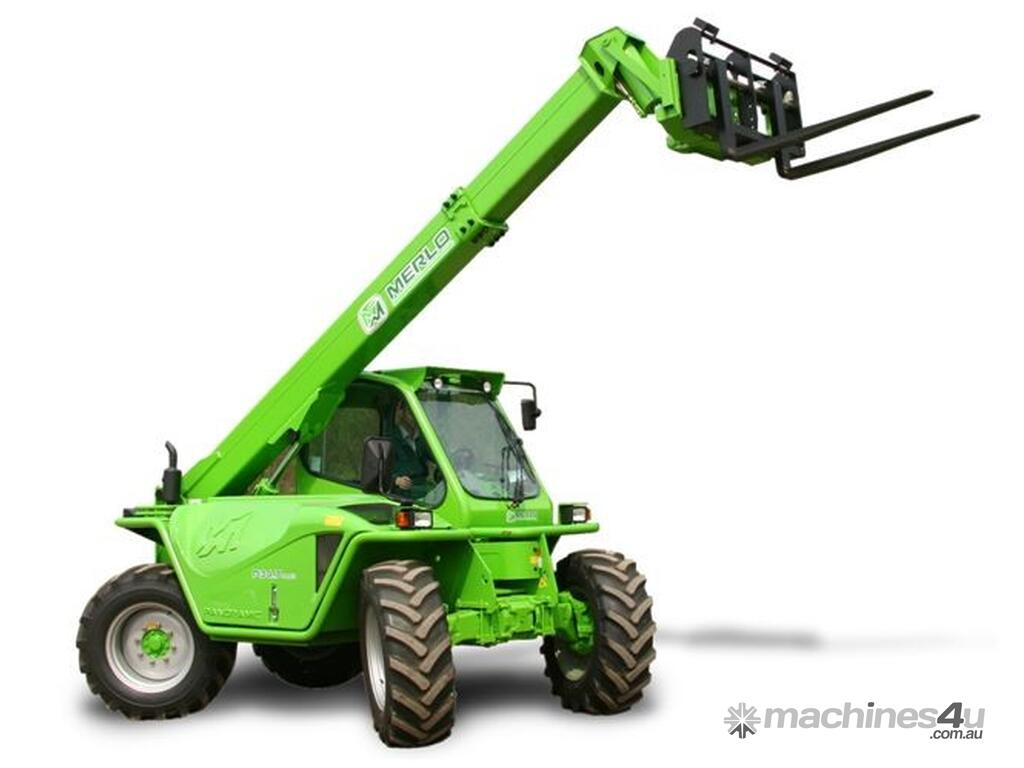

Merlo P 34.7 telehandler for hire offering a maximum rated capacity (MRC) of 3400 kg with a maximum lift height of 7.0 m and a MRC of 3400 kg at this height.

Merlo telescopic handler available for hire providing a maximum forward reach of 3.65 metres with a maximum rated capacity of 1350 kg at this reach. The Merlo P 34.7 telehandler has an overall length of 4.180 metres stowed, a width of 2.230 metres and a height of 2.475 metres, weighing in at 6600 kg. It features a hydrostatic transmission with a maximum speed of 40 kph, constant 4WD with three steering modes and features a 74.9 kw Deutz engine. Merlo telehandlers are manufactured in Italy and suit the Agriculture, Construction, Defence, Events, Landscaping, Materials Handling, Mining, Oil & Gas, Pipeline, Recycling, Transportation industries.

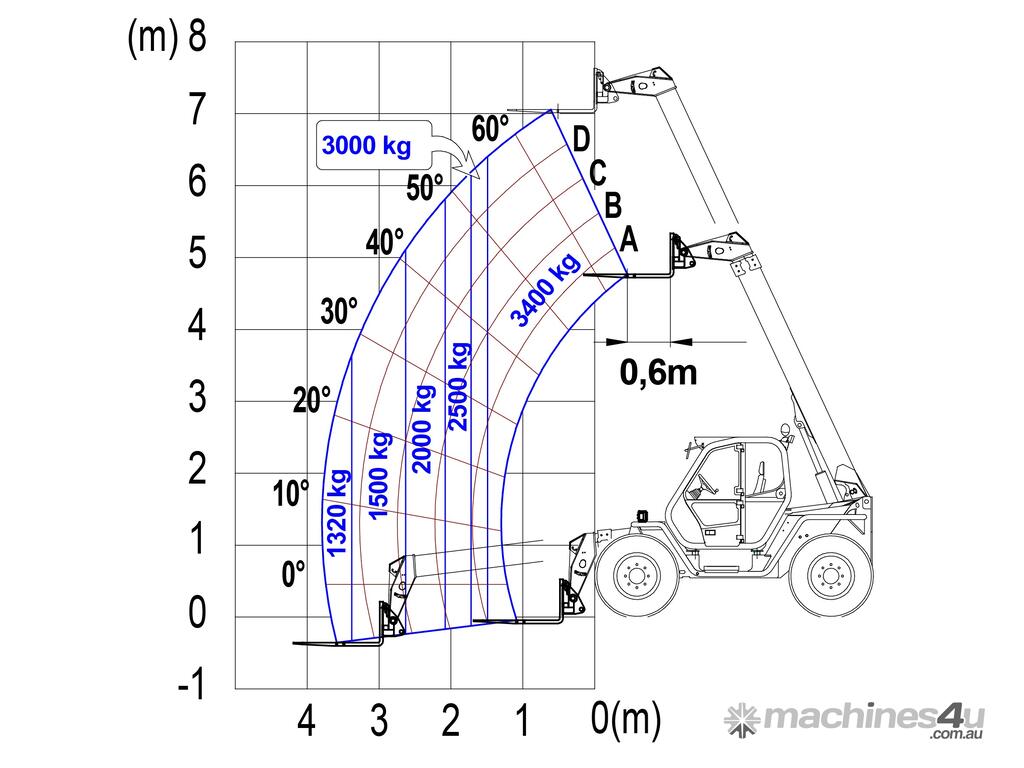

 Operating Limits
Maximum Rated Capacity (kg) : 3400
Maximum Lift Height at Forks (m) : 7
Rated Capacity at Maximum Lift Height (kg) : 3400
Forward Reach at Maximum Lift Height (m) : 0.5
Maximum Forward Reach (m) : 3.65
Rated Capacity at Maximum Forward Reach (kg) : 1350
Fork Tilt Upper (deg) : Not Available
Fork Tilt Lower (deg) : Not Available
Maximum Drive Speed Stowed (km/h) : 40
Wind Speed Rating (km/h) : 36
 Operating Environments :
Frame Levelling +/- (deg) : Not Available
Pick and Carry (Travelling) Maximum Side Slope (deg) : 6
Pick and Carry (Travelling) Maximum Decline Slope (deg) : 7
Pick and Carry (Travelling) Maximum Incline Slope (deg) : 18
Lifting (Stationary) Maximum Side Slope (deg) : 3
Lifting (Stationary) Maximum Decline Slope (deg) : 3
Lifting (Stationary) Maximum Incline Slope (deg) : 5
Sound Pressure in Cabin (dBA) : Not Available
Sound Power Level (dB) : Not Available
Minimum Operating Temperature (C) : Not Available
Maximum Operating Temperature (C) : Not Available
 Dimensions :
Height Stowed (m) : 2.475
Width Stowed (m) : 2.23
Track (m) : Not Available
Width with Stabilisers Down (m) : Not Available
Cabin Width (m) : 0.995
Wheelbase Axle to Axle (m) : 2.7
Length from Rear to Front Wheels (m) : 3.865
Length from Rear to Front of Carriage (m) : 4.18
Outside Turning Radius at Tip of Forks (m) : 4.67
Outside Turning Radius (m) : 3.985
Ground Clearance (m) : 0.565
Obstruction Angle (deg) : Not Available
Departure Angle (deg) : Not Available
Fork Size (W x H x L) (mm) : 130 x 50 x 1200
Minimum Space Between Forks (m) : 0.45
Maximum Space Between Forks (m) : 1.05
 Weights :
Unit Weight (kg) : 6600
Occupied Floor Pressure (kg/m2) : Not Available
Worst Case Static Wheel Pressure (psi) : Not Available
Worst Case Static Wheel Load (kg) : Not Available
 Safety Features :
Maximum Load Capacity Limiter : Yes
Load Moment Indicator (LMI) : Yes
Load Management System (LMS) : Yes
Adaptive Load Control to EN15000 : No
Reverse Camera : Yes
ROPS Certified Cabin : Yes
FOPS Certified Cabin : Yes
Front Windscreen Protection Guard : Yes
Rotating Beacon : Yes
Horn : Yes
Alarm Reverse Warning : Yes
 Standard Features :
Factory Air Conditioning : Yes
Proportional Joystick : Yes
Mirror Left Side : Yes
Mirror Right Side : Yes
Roof Window Wiper : No
Auxiliary Quick Release Connectors at Boom Head : Yes
Cabin Heater : Yes
Quick Release Carriage Adaptor : Yes
Steering System Automatic Self Alignment : No
 Optional Extras :
Exterior Work Lights : Yes
Work Platform Compatible : No
Hydraulic Winch Pre-Arrangement : No
Level 1 Mine Spec : Yes
Level 2 Mine Spec : Yes
Construction Pack : Yes
Conditional Registration : Yes
 Optional Platform :
Platform Working Height Maximum (m) : Not Available
Platform Height Maximum (m) : Not Available
Platform Rated Capacity Indoors (kg) : Not Available
Platform Rated Capacity Outdoors (kg) : Not Available
Platform Occupancy Indoor : Not Available
Platform Occupancy Outdoor : Not Available
Platform Width Outside (m) : Not Available
Platform Length Outside (m) : Not Available
Platform Length with Extension (m) : Not Available
 Fluid Capacities :
Diesel (LTRS) : 155
Engine Oil (LTRS) : 8.5
Coolant (LTRS) : 12
Hydraulic Oil (LTRS) : 105
 Drive Components :
Engine Manufacturer : Deutz
Engine Model : Not Available
Engine Power (kw) : 74.9
Drive Type : 4 Wheel Drive
Transmission Manufacturer : To Be Confirmed
Transmission Type : Hydrostatic
Steering Type : Hydraulic
Steering Modes : 3 Steering Modes (Front Wheel, All-Wheel and Crab Steer)
Parking Brake : Disk Parking Brake with Automatic Locking Feature and Hydraulic Release Control
Service Brake : Disc Brakes on All Wheels
Axle Manufacturer : Merlo
Joystick Manufacturer : Not Available
 Hydraulic System :
Hydraulic System Maximum Pressure (bar) : 210
Hydraulic Valve Manufacturer : Not Available
Maximum Hydraulic Pump Flow (L/min) : 100
Hydraulic Auxiliary Circuit Intermittent Supply (L/min) : Not Available
Hydraulic Auxiliary Circuit Continuous Supply (L/min) : Not Available
Boom Lift Cycle Time (s) : Not Available
Boom Lower Cycle Time (s) : Not Available
Boom Extend Cycle Time (s) : Not Available
Boom Retract Cycle Time (s) : Not Available
Carriage Dump Cycle Time (s) : Not Available
Carriage Crowd Cycle Time (s) : Not Available
 Tyres :
Tyre Types : Pneumatic
Tyre Manufacturer : Mitas
Tyre Sizes (mm) : 405/70-24
 Lighting and Electrical :
Electrical Circuit (V) : 12
Battery (Ah) : Not Available
Full Road Lighting and Blinker Kit : Yes
Manual Battery Isolater : Yes
 Maintenance Documentation (Manufacturer Supplied) :
Manual supplied for Operators (PDF) : To Be Confirmed
Manual supplied for Spare Parts (PDF) : To Be Confirmed
Manual supplied for Service/Workshop (PDF) : To Be Confirmed
Schematic Diagram for Electrical System (PDF) : To Be Confirmed
Schematic Diagram for Hydraulic System (PDF) : To Be Confirmed
Preventative Maintenance Schedule Supplied : To Be Confirmed
Preventative Maintenance Schedule Supplied with Cost Forecast : To Be Confirmed
Plant Risk Assessment Model Specific (PDF) : To Be Confirmed
Service Bulletins and Upgrades available : To Be Confirmed
Service Bulletins and Upgrades available online : To Be Confirmed
 Third Party Compliance Documentation (Manufacturer Supplied) :
Declaration of Conformity for design in accordance with AS 1418-19 : To Be Confirmed
Declaration of Conformity for all attachments to AS 1418-19. : To Be Confirmed
Stability Test Results for all attachments to AS 1418-19 : No
Declaration of Conformity for ROPS Compliance to ISO3471 : To Be Confirmed
Declaration of Conformity for FOPS Compliance to ISO3449 : To Be Confirmed
Declaration of Conformity to Low Engine Emissions EU Directive : To Be Confirmed
Noise Emissions Report : No
