Merlo P 60.10

SMITHFIELD, NSW

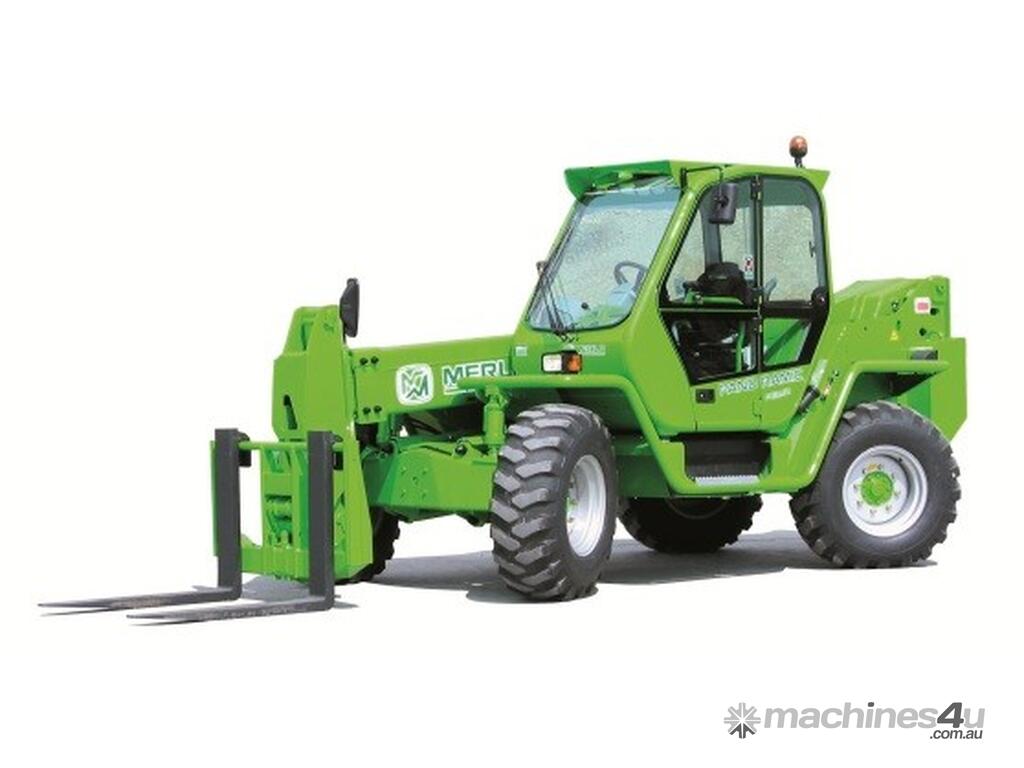

Merlo P 60.10 telehandler for hire offering a maximum rated capacity (MRC) of 6000 kg with a maximum lift height of 9.55 m and a MRC of 4000 kg at this height.

Merlo telescopic handler available for hire providing a maximum forward reach of 5.50 metres with a maximum rated capacity of 1500 kg at this reach. The Merlo P 60.10 telehandler has an overall length of 5.345 metres stowed, a width of 2.24 metres and a height of 2.44 metres, weighing in at 9890 kg. It features a hydrostatic transmission with a maximum speed of 40 kph, constant 4WD with three steering modes and features a 74.5 kw Perkins engine. Merlo telehandlers are manufactured in Italy and suit the Agriculture, Construction, Defence, Events, Heavy Industry, Materials Handling, Mining, Oil & Gas, Pipeline, Power Generation, Recycling, Transportation industries. Merlo telescopic handlers come with a 2 year factory warranty.

GTH Equipment has the largest and most comprehensive telehandler fleet in Sydney, NSW. All our equipment is extensively maintained and rental ready to the highest standards. Our pro-active safety systems for our fleet ensures GTH Equipment and the customers comply with current WHS regulations making it easy for the operators to complete their WHS requirements.

View licensing requirements to operate this telescopic handler.

*Price varies depending on duration of hire period.

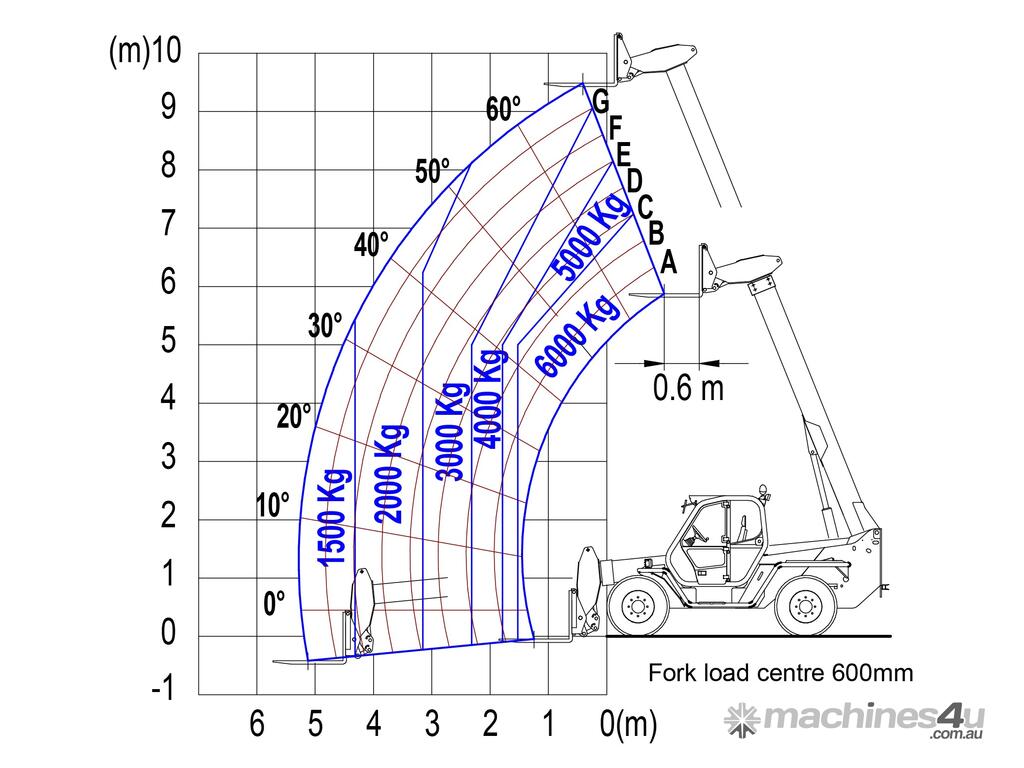

 Operating Limits
Maximum Rated Capacity (kg) : 6000
Maximum Lift Height at Forks (m) : 9.55
Rated Capacity at Maximum Lift Height (kg) : 4000
Forward Reach at Maximum Lift Height (m) : 1.6
Maximum Forward Reach (m) : 5.5
Rated Capacity at Maximum Forward Reach (kg) : 1500
Fork Tilt Upper (deg) : Not Available
Fork Tilt Lower (deg) : Not Available
Maximum Drive Speed Stowed (km/h) : 40
Wind Speed Rating (km/h) : Not Available
 Operating Environments :
Frame Levelling +/- (deg) : 10
Pick and Carry (Travelling) Maximum Side Slope (deg) : 5
Pick and Carry (Travelling) Maximum Decline Slope (deg) : 5
Pick and Carry (Travelling) Maximum Incline Slope (deg) : 18
Lifting (Stationary) Maximum Decline Slope (deg) : 5
Lifting (Stationary) Maximum Incline Slope (deg) : 3
Sound Pressure in Cabin (dBA) : Not Available
Sound Power Level (dB) : Not Available
Minimum Operating Temperature (C) : Not Available
Maximum Operating Temperature (C) : Not Available
 Dimensions :
Height Stowed (m) : 2.44
Width Stowed (m) : 2.24
Track (m) : Not Available
Width with Stabilisers Down (m) : Not Available
Cabin Width (m) : 0.995
Wheelbase Axle to Axle (m) : 2.875
Length from Rear to Front Wheels (m) : 4.645
Length from Rear to Front of Carriage (m) : 5.345
Outside Turning Radius at Tip of Forks (m) : 4.97
Outside Turning Radius (m) : 3.95
Ground Clearance (m) : 0.48
Obstruction Angle (deg) : Not Available
Departure Angle (deg) : Not Available
Fork Size (W x H x L) (mm) : 150 x 60 x 1200
Minimum Space Between Forks (m) : Not Available
Maximum Space Between Forks (m) : Not Available
 Weights :
Unit Weight (kg) : 9890
Occupied Floor Pressure (kg/m2) : Not Available
Worst Case Static Wheel Pressure (psi) : Not Available
Worst Case Static Wheel Load (kg) : Not Availabe
 Safety Features :
Maximum Load Capacity Limiter : Yes
Load Moment Indicator (LMI) : Yes
Load Management System (LMS) : Yes
Adaptive Load Control to EN15000 : No
Reverse Camera : Yes
ROPS Certified Cabin : Yes
FOPS Certified Cabin : Yes
Front Windscreen Protection Guard : Yes
Rotating Beacon : Yes
Horn : Yes
Alarm Reverse Warning : Yes
 Standard Features :
Factory Air Conditioning : Yes
Proportional Joystick : Yes
Mirror Left Side : Yes
Mirror Right Side : Yes
Roof Window Wiper : No
Auxiliary Quick Release Connectors at Boom Head : Yes
Cabin Heater : Yes
Quick Release Carriage Adaptor : Yes
Steering System Automatic Self Alignment : No
 Optional Extras :
Exterior Work Lights : Yes
Work Platform Compatible : No
Hydraulic Winch Pre-Arrangement : No
Level 1 Mine Spec : Yes
Level 2 Mine Spec : Yes
Construction Pack : Yes
Conditional Registration : Yes
 Optional Platform :
Platform Working Height Maximum (m) : Not Available
Platform Height Maximum (m) : Not Available
Platform Rated Capacity Indoors (kg) : Not Available
Platform Rated Capacity Outdoors (kg) : Not Available
Platform Occupancy Indoor : Not Available
Platform Occupancy Outdoor : Not Available
Platform Width Outside (m) : Not Available
Platform Length Outside (m) : Not Available
Platform Length with Extension (m) : Not Available
 Fluid Capacities :
Diesel (LTRS) : 155
Engine Oil (LTRS) : 8.5
Coolant (LTRS) : 12
Hydraulic Oil (LTRS) : 95
 Drive Components :
Engine Manufacturer : Perkins
Engine Model : Euro 2 Water Cooled Turbo Diesel
Engine Power (kw) : 74.5
Drive Type : 4 Wheel Drive
Transmission Manufacturer : To Be Confirmed
Transmission Type : Hydrostatic
Steering Type : Hydraulic
Steering Modes : 3 Steering Modes (Front Wheel, All-Wheel and Crab Steer)
Parking Brake : Disc Parking Brake With Automatic Locking
Service Brake : Disc Brakes on All Wheels
Axle Manufacturer : To Be Confirmed
Joystick Manufacturer : Not Available
 Hydraulic System :
Hydraulic System Maximum Pressure (bar) : 210
Hydraulic Valve Manufacturer : Not Available
Maximum Hydraulic Pump Flow (L/min) : 108
Hydraulic Auxiliary Circuit Intermittent Supply (L/min) : Not Available
Hydraulic Auxiliary Circuit Continuous Supply (L/min) : Not Available
Boom Lift Cycle Time (s) : Not Available
Boom Lower Cycle Time (s) : Not Available
Boom Extend Cycle Time (s) : Not Available
Boom Retract Cycle Time (s) : Not Available
Carriage Dump Cycle Time (s) : Not Available
Carriage Crowd Cycle Time (s) : Not Available
 Tyres :
Tyre Types : Pneumatic
Tyre Manufacturer : Mitas
Tyre Sizes (mm) : 400/70-20
 Lighting and Electrical :
Electrical Circuit (V) : 12
Battery (Ah) : 100
Full Road Lighting and Blinker Kit : Yes
Manual Battery Isolater : Yes
 Maintenance Documentation (Manufacturer Supplied) :
Manual supplied for Operators (PDF) : To Be Confirmed
Manual supplied for Spare Parts (PDF) : To Be Confirmed
Manual supplied for Service/Workshop (PDF) : To Be Confirmed
Schematic Diagram for Electrical System (PDF) : To Be Confirmed
Schematic Diagram for Hydraulic System (PDF) : To Be Confirmed
Preventative Maintenance Schedule Supplied : To Be Confirmed
Preventative Maintenance Schedule Supplied with Cost Forecast : To Be Confirmed
Plant Risk Assessment Model Specific (PDF) : To Be Confirmed
Service Bulletins and Upgrades available : To Be Confirmed
Service Bulletins and Upgrades available online : To Be Confirmed
 Third Party Compliance Documentation (Manufacturer Supplied) :
Declaration of Conformity for design in accordance with AS 1418-19 : To Be Confirmed
Declaration of Conformity for all attachments to AS 1418-19. : To Be Confirmed
Stability Test Results for all attachments to AS 1418-19 : No
Compliant Attachments to AS 1418-19 : 10
Declaration of Conformity for ROPS Compliance to ISO3471 : To Be Confirmed
Declaration of Conformity for FOPS Compliance to ISO3449 : To Be Confirmed
Declaration of Conformity to Low Engine Emissions EU Directive : To Be Confirmed
Noise Emissions Report : No
