Genie Z-80/60

SMITHFIELD, NSW

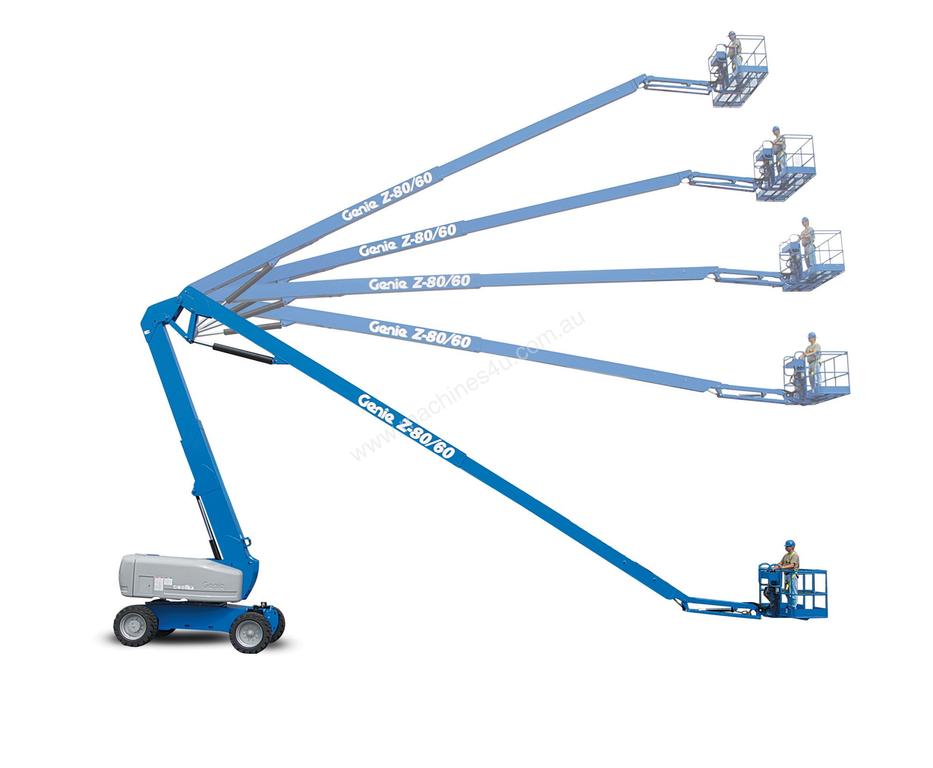

Genie Z-80/60 knuckle boom lift for sale providing a platform working height of 25.77 m with a horizontal reach of 18.29 m and a rated capacity of 227 kg.

Genie Z-80/60 diesel powered knuckle boom lift available for sale. This Genie knuckle boom lift has an overall height of 3.00 metres stowed, a width of 2.49 metres weighing in at 17010 kilograms. The Genie Z-80/60 knuckle boom lift features a maximum platform working height of 25.77 meters with a maximum platform height of 23.77 meters. This knuckle boom lift has a drive speed of 4.83 km/h stowed with a platform rotation of 160 degrees capable of lifting 227 kg.

 Operating Limits
Platform Working Height Maximum (m) : 25.77
Platform Height Maximum (m) : 23.77
Horizontal Reach : 18.29
Maximum Drive Speed Stowed (km/h) : 4.83
Turntable Rotation (deg) : 360
Platform Rotation (deg) : 160
Platform Occupancy Indoor : To Be Confirmed
Platform Rated Capacity Indoors (kg) : 227
Platform Occupancy Outdoor : To Be Confirmed
Platform Rated Capacity Outdoors (kg) : 227
Wind Speed Rating (km/h) : To Be Confirmed
 Dimensions :
Height Stowed (m) : 3
Width Stowed (m) : 2.49
Outside Turning Radius (m) : 4.57
Track (m) : To Be Confirmed
Wheelbase Axle to Axle (m) : 2.85
Ground Clearance (m) : 0.3
Platform Width Outside (m) : 2.44
Platform Length Outside (m) : 0.91
Platform Length with Extension (m) : To Be Confirmed
 Weights :
Unit Weight (kg) : 17010
Occupied Floor Pressure (kg/m2) : To Be Confirmed
Worst Case Static Wheel Pressure (psi) : To Be Confirmed
Worst Case Static Wheel Load (kg) : To Be Confirmed
 Operating Environments :
Rated for Outdoor Use : Yes
Minimum Operating Temperature (C) : To Be Confirmed
Maximum Operating Temperature (C) : To Be Confirmed
Pick and Carry (Travelling) Maximum Side Slope (deg) : To Be Confirmed
Pick and Carry (Travelling) Maximum Decline Slope (deg) : To Be Confirmed
Pick and Carry (Travelling) Maximum Incline Slope (deg) : To Be Confirmed
Lifting (Stationary) Maximum Decline Slope (deg) : To Be Confirmed
Sound Pressure in Cabin (dBA) : To Be Confirmed
Vibration Levels Transmitted to Body (m/s2) : To Be Confirmed
Sound Power Level (dB) : To Be Confirmed
Vibration Level at Operators Hands (m/s2) : To Be Confirmed
Vibration Levels at Operator's Feet (m/s2) : To Be Confirmed
 Standard Features :
Proportional Joystick : Yes
 Fluid Capacities :
Diesel (LTRS) : 132
Engine Oil (LTRS) : To Be Confirmed
Coolant (LTRS) : To Be Confirmed
Hydraulic Oil (LTRS) : 170
 Drive Components :
Engine Manufacturer : Deutz
Engine Model : TD 2011 L04i
Engine Power (kw) : 55
Drive Type : 4 Wheel Drive
Transmission Manufacturer : To Be Confirmed
Transmission Type : To Be Confirmed
Steering Type : Hydraulic
Steering Modes : 3 Steering Modes (Front Wheel, All-Wheel and Crab Steer)
Parking Brake : To Be Confirmed
Service Brake : Not Available
Axle Manufacturer : To Be Confirmed
Joystick Manufacturer : To Be Confirmed
 Hydraulic System :
Hydraulic System Maximum Pressure (bar) : To Be Confirmed
Hydraulic Valve Manufacturer : To Be Confirmed
Maximum Hydraulic Pump Flow (L/min) : To Be Confirmed
 Safety Features :
Rotating Beacon : Yes
Alarm Reverse Warning : Yes
Horn : Yes
Tilt Angle Indicator Cut-Out (deg) : To Be Confirmed
 Tyres :
Tyre Types : Foam Filled
Tyre Manufacturer : Not Available
Tyre Sizes (mm) : 445 / 500 710
